Zebra is ending sale of the ZD230t (ZD23042-301H00EZ) on January 1, 2027. Available while supplies last. A similar current model is the Zebra ZD421t (ZD4A042-301M00EZ): 4-inch, 203 dpi thermal transfer with 74 m / 300 m ribbon, USB, USB host and Bluetooth LE 5.
Description

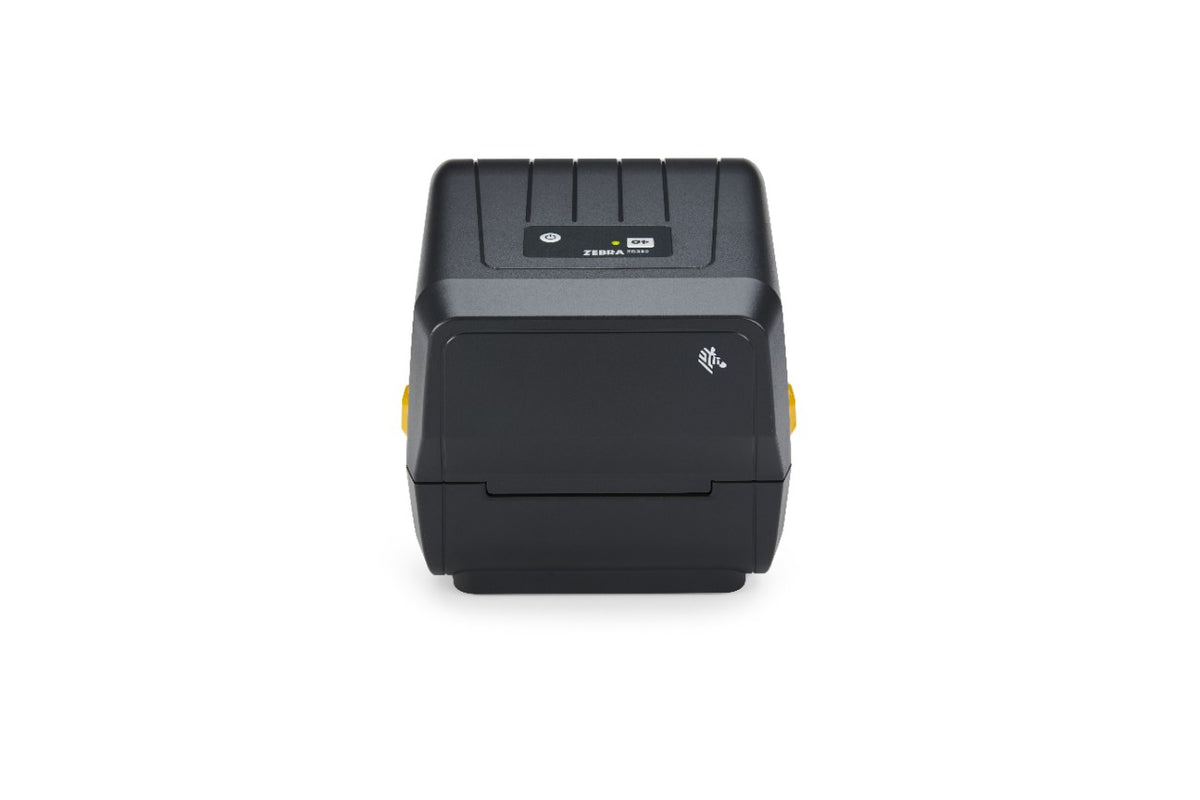

The Zebra ZD230t is a 4-inch, 203 dpi thermal transfer desktop printer that prints up to 6 inches per second. It takes a 300 m ribbon roll as well as the 74 m size, so you change ribbons less often, and it also prints direct thermal without a ribbon. A dual-wall frame and Zebra's OpenACCESS™ clamshell design make it a dependable, easy-to-load choice for shipping, retail, light manufacturing and healthcare labels, tags and receipts.
Key features
- Prints up to 6 in/s (152 mm/s) at 203 dpi, 4.09 in maximum print width
- Holds a 300 m (984 ft) ribbon on a 1 in core, or a 74 m ribbon on a 0.5 in core
- Zebra's OpenACCESS™ clamshell design makes loading media a snap
- USB and Bluetooth 4.1 connectivity
- Print DNA™ Basic software, powered by Link-OS®
- ENERGY STAR® qualified
Part numbers
| Part Number |
|---|
| ZD23042-301H00EZ |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Thermal transfer and direct thermal |
|---|---|
| Dimensions | 10.5 x 7.75 x 7.5 in (267 x 197 x 191 mm) L x W x H |
| Weight | 3.7 lb (1.7 kg) |
| Maximum print speed | 6 in/s (152 mm/s) |
| Connectivity | USB + Bluetooth 4.1 |
| Media handling | Tear-off |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print width | 4.09 in (104 mm) |
| Memory | 128 MB flash; 128 MB SDRAM (50 MB / 8 MB user available) |
| Media width | 1.00–4.4 in (25.4–112 mm) |
| Maximum roll size | 5.00 in (127 mm) OD; 0.5 in and 1.0 in core, 1.5 in with adapter |
| Maximum label length | 39.0 in (991 mm) |
| Media thickness | 0.003–0.0075 in (0.08–0.19 mm); max in tear-off mode only |
| Media types | Roll or fan-fold; die-cut or continuous, with or without black mark; tag stock; receipt paper; wristbands |
| Media sensors | Movable black-mark sensor (center to left); fixed off-center gap sensor |
| Programming languages | ZPL II, EPL 2, XML |
| Operating system | Link-OS Basic; Print DNA Basic |
| Operating temperature | 40–105 °F (4.4–41 °C) |
| Electrical | 100–240 VAC, 50–60 Hz, auto-detect; ENERGY STAR qualified |
| Warranty | 2 years (Zebra) |
| Ribbon capacity | 74 m (244 ft) 0.5 in core or 300 m (984 ft) 1 in core |
Download the ZD230t spec sheet (PDF)
Warranty and support
Warranty: 2-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What is the difference between the ZD220 and ZD230?
Both are 4-inch, 203 dpi Zebra desktop printers. The ZD220 prints up to 4 in/s and connects by USB only. The ZD230 prints up to 6 in/s and adds Ethernet, Bluetooth or Wi-Fi options, a cutter option, and (on thermal-transfer models) a 300 m ribbon.
What is the difference between the 'd' and 't' models?
'd' models are direct thermal only, with no ribbon. 't' models print thermal transfer with a ribbon, or direct thermal without one.
Is the ZD220 a replacement for the Zebra GC420?
Yes. Zebra positions the ZD220 as the direct replacement for the GC420.
What is the widest label it takes?
Media from 1.00 to 4.4 in wide; maximum print width is 4.09 in.
Can it print 4 x 6 shipping labels?
Yes. A 4 x 6 in label is within the 4.4 in media width and 39 in maximum label length.
What roll size and core fit?
Rolls up to 5 in outer diameter on 0.5 in or 1 in cores; 1.5 in cores with optional adapters.
Which programming languages does it support?
ZPL II, EPL 2 and XML, with emulations for some non-Zebra languages.
What warranty does it have?
Zebra warrants ZD200 Series printers for 2 years from shipment; Zebra OneCare plans extend coverage.
