Description

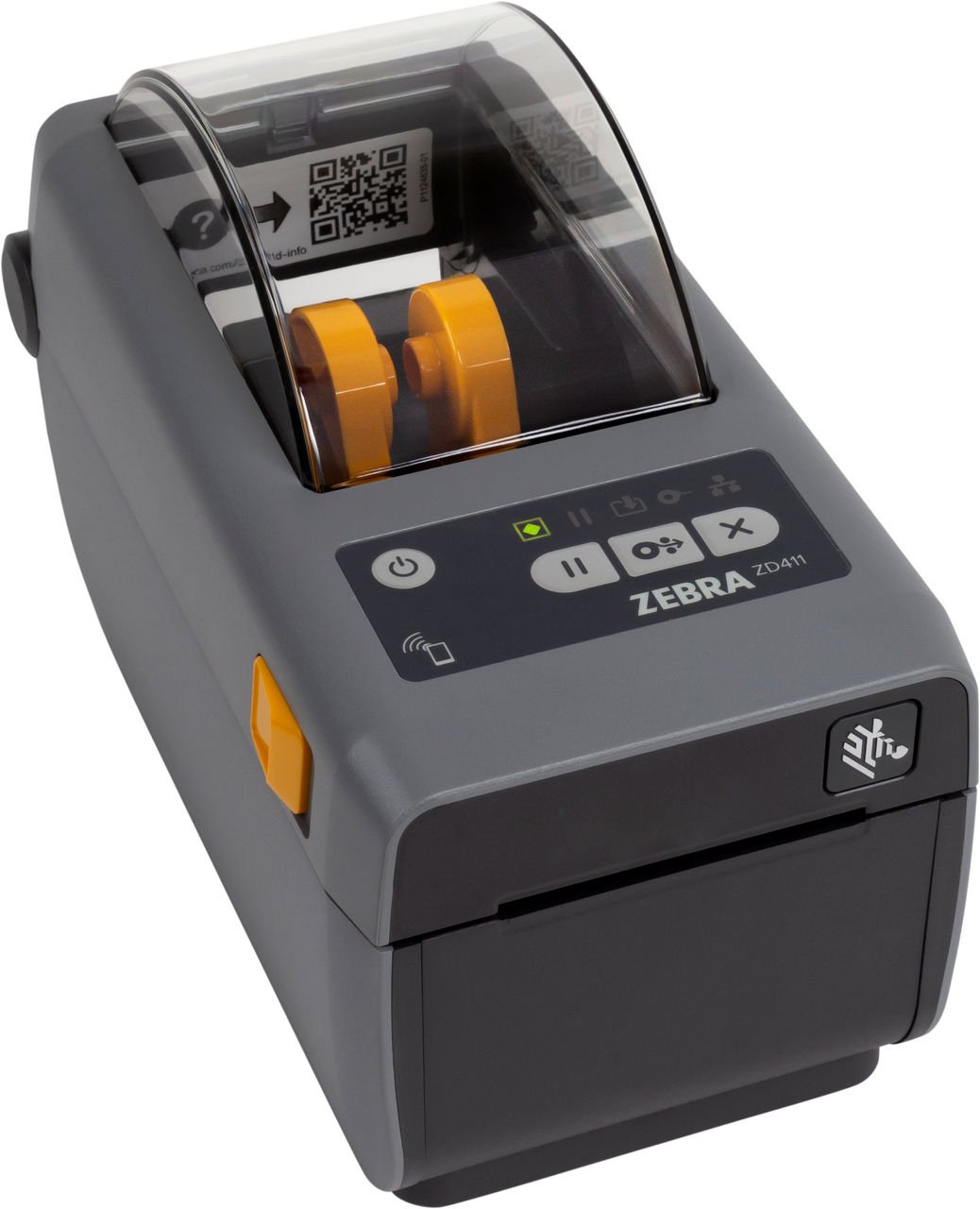

The ZD411d 2-inch desktop printer delivers the features, flexibility and security customers need for years to come. Featuring a new architecture and Zebra’s exclusive Print DNA software suite, the ZD411d allows easy setup, operation and maintenance.
Key features
- Replaces the ZD410d, offering more functions and capabilities powered by a new innovative architecture that can run more tasks, perform more operations simultaneously and is ready for what's next.
- Operates with ease with the five LED icons to take the guesswork out of printer status, and has a three-button user interface for added functionality and control.
- Connectivity includes USB and USB Host standard, and optional Ethernet, Serial and dual wireless radio, Wi-Fi 5 (802.11ac) with Bluetooth 4.1, factory- or field-installable.
- Zebra's exclusive Print DNA software suite makes it easy to get printers up and running quickly. And PrintSecure makes it easy to shield printers from cyberattacks.
- Increase printer flexibility and use cases with options and accessories, including 300 dpi, desktop battery, peeler, cutter, keyboard display unit, and mounting plate.
Part numbers
| Part Number |
|---|
| ZD4A022-D01E00GA |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Direct thermal |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | 6 in/s (152 mm/s) |
| Maximum print width | 2.2 in (56 mm) |
| Connectivity | USB 2.0, USB Host; Bluetooth LE for the Zebra setup app; Ethernet on select models |
| Display | 5 status icons, 3-button interface |
| Media handling | Tear-off; peeler and cutter also field-installable |
| Memory | 512 MB flash; 256 MB SDRAM |
| Media width | 0.585–2.36 in (15–60 mm) |
| Maximum roll size | 5.00 in (127 mm) OD; 0.5 in and 1.0 in cores standard; 1.5, 2.0 and 3.0 in with optional adapters |
| Label length | 0.25–39.0 in (6.35–991 mm) |
| Media thickness | 0.0024–0.0075 in (0.06–0.19 mm); max in tear-off mode only |
| Media types | Roll or fan-fold; die-cut or continuous, with or without black mark; tag stock; receipt paper; wristbands |
| Media sensors | Full-width movable reflective/black-mark sensor; multi-position transmissive/gap sensor |
| Programming languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Operating system | Link-OS; Zebra DNA |
| Dimensions | 8.6 x 4.5 x 6.0 in (220 x 115 x 151 mm) L x W x H |
| Weight | 2.2 lb (1.0 kg) |
| Operating temperature | 40–105 °F (4.4–41 °C) |
| Electrical | 100–240 VAC, 50–60 Hz, auto-detect; ENERGY STAR certified; optional 2750 mAh battery |
| Compliance | TAA compliant |
| Warranty | 2 years (Zebra) |
Download the ZD411d-203-TAA spec sheet (PDF)
Warranty and support
Warranty: 2-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What is the difference between the ZD411d and ZD411t?
The ZD411d is direct thermal only, so it needs no ribbon. The ZD411t prints thermal transfer with a 74 m ribbon, or direct thermal without one.
What is the difference between the ZD411 and ZD611?
Both are 2-inch printers. The ZD611 prints faster (8 in/s at 203 dpi versus 6 in/s), has Ethernet standard, and the thermal transfer model adds a 4.3 in color touch display and a media dancer.
What label sizes fit?
Media from 0.585 to 2.36 in wide and 0.25 to 39 in long, such as 2 x 1 in and 2.25 x 1.25 in labels. It prints up to 2.2 in wide at 203 dpi.
What roll size and core fit?
Rolls up to 5 in outer diameter on 0.5 in or 1 in cores, and 1.5, 2 or 3 in cores with optional adapters.
What connectivity does it have?
Every ZD411 has USB 2.0 and USB Host, plus Bluetooth LE for the Zebra setup app. Ethernet, Serial and dual-radio Wi-Fi with Bluetooth are available by model or as field-installable kits.
What does TAA compliant mean?
This model meets the Trade Agreements Act, which US federal agencies require for most purchases: it is made or substantially transformed in the US or a designated country.
Can it run on battery?
Yes. An optional battery powers a full shift at maximum print speed, so the printer can go on a cart to the point of use.
What warranty does it have?
Zebra warrants ZD400 Series printers for 2 years from shipment. Zebra OneCare plans extend coverage.
