Description

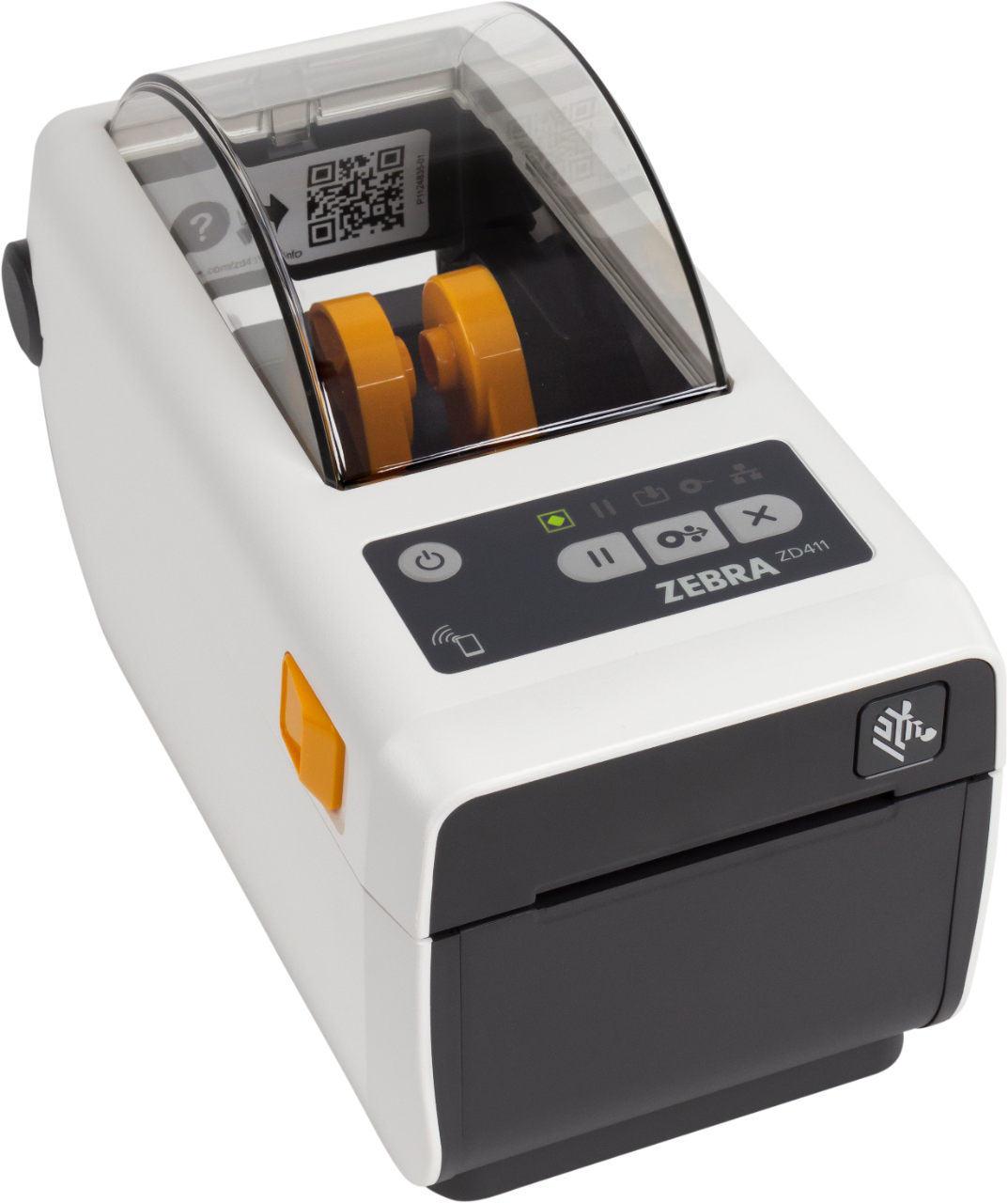

The ZD411d-HC direct thermal advanced desktop printer is built specifically for healthcare environments, offering disinfectant-ready white plastics, UV-resistant housing with sealed button interface, and an IEC 60601-1 compliant power supply.
Key features
- Replaces the ZD410d healthcare printer, offering more functions and capabilities powered by an innovative architecture that can run more tasks, perform more operations simultaneously and is ready for what's next.
- Operates with ease with the five LED icons to take the guesswork out of printer status, and has a three-button user interface for added functionality and control.
- Connectivity includes USB and USB Host standard, and optional Ethernet, Serial and dual wireless radio, Wi-Fi 5 (802.11ac) with Bluetooth 4.2, factory- or field-installable.
- Zebra's exclusive Print DNA software suite makes it easy to get printers up and running quickly. And PrintSecure makes it easy to shield printers from cyberattacks.
- Increase printer flexibility and use cases with options and accessories, including 300 dpi, desktop battery, peeler, cutter, keyboard display unit, and mounting plate.
Part numbers
| Part Number | Connectivity | Media handling |
|---|---|---|
| ZD4AH22-D01E00GA | Ethernet + BLE | Standard (none) |
| ZD4AH22-D01W01GA | Wi-Fi 5 + BT | Standard (none) |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Direct thermal |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | 6 in/s (152 mm/s) |
| Maximum print width | 2.2 in (56 mm) |
| Healthcare features | Healthcare white housing; disinfectant-ready plastics with sealed button interface; UV-resistant housing for UV cleaning; IEC 60601-1 certified power supply |
| Connectivity | USB 2.0, USB Host; Bluetooth LE for the Zebra setup app; Ethernet on select models; wireless models add Wi-Fi 5 (802.11ac) + Bluetooth 4.2 |
| Display | 5 status icons, 3-button interface |
| Media handling | Tear-off; peeler and cutter also field-installable |
| Memory | 512 MB flash; 256 MB SDRAM |
| Media width | 0.585–2.36 in (15–60 mm) |
| Maximum roll size | 5.00 in (127 mm) OD; 0.5 in and 1.0 in cores standard; 1.5, 2.0 and 3.0 in with optional adapters |
| Label length | 0.25–39.0 in (6.35–991 mm) |
| Media thickness | 0.003–0.0075 in (0.08–0.19 mm); max in tear-off mode only |
| Media types | Roll or fan-fold; die-cut or continuous, with or without black mark; tag stock; receipt paper; wristbands |
| Media sensors | Full-width movable reflective/black-mark sensor; multi-position transmissive/gap sensor |
| Programming languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Operating system | Link-OS; Zebra DNA |
| Dimensions | 8.6 x 4.5 x 6.0 in (220 x 115 x 151 mm) L x W x H |
| Weight | 2.2 lb (1.0 kg) |
| Operating temperature | 40–105 °F (4.4–41 °C) |
| Electrical | 100–240 VAC, 50–60 Hz, auto-detect; ENERGY STAR certified; optional 2750 mAh battery; IEC 60601-1 certified power supply |
| Compliance | TAA compliant |
| Warranty | 2 years (Zebra) |
Download the ZD411d-HC-203-TAA spec sheet (PDF)
Warranty and support
Warranty: 2-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What makes the ZD411d-HC a healthcare printer?
It has disinfectant-ready white plastics, a sealed button interface, a UV-resistant housing that supports UV cleaning, and an IEC 60601-1 certified power supply for use in healthcare facilities.
What is the difference between the ZD411d and ZD411t?
The ZD411d is direct thermal only, so it needs no ribbon. The ZD411t prints thermal transfer with a 74 m ribbon, or direct thermal without one.
What label sizes fit?
Media from 0.585 to 2.36 in wide and 0.25 to 39 in long, such as 2 x 1 in and 2.25 x 1.25 in labels. It prints up to 2.2 in wide at 203 dpi.
What roll size and core fit?
Rolls up to 5 in outer diameter on 0.5 in or 1 in cores, and 1.5, 2 or 3 in cores with optional adapters.
What connectivity does it have?
Every ZD411 has USB 2.0 and USB Host, plus Bluetooth LE for the Zebra setup app. Ethernet, Serial and dual-radio Wi-Fi with Bluetooth are available by model or as field-installable kits. Wireless models on this page ship with Wi-Fi 5 (802.11ac) + Bluetooth 4.2.
What does TAA compliant mean?
This model meets the Trade Agreements Act, which US federal agencies require for most purchases: it is made or substantially transformed in the US or a designated country.
Can it run on battery?
Yes. An optional battery powers a full shift at maximum print speed, so the printer can go on a cart to the point of use.
What warranty does it have?
Zebra warrants ZD400 Series printers for 2 years from shipment. Zebra OneCare plans extend coverage.
