Also available: Zebra ZD411t — 300 dpi Models
Description

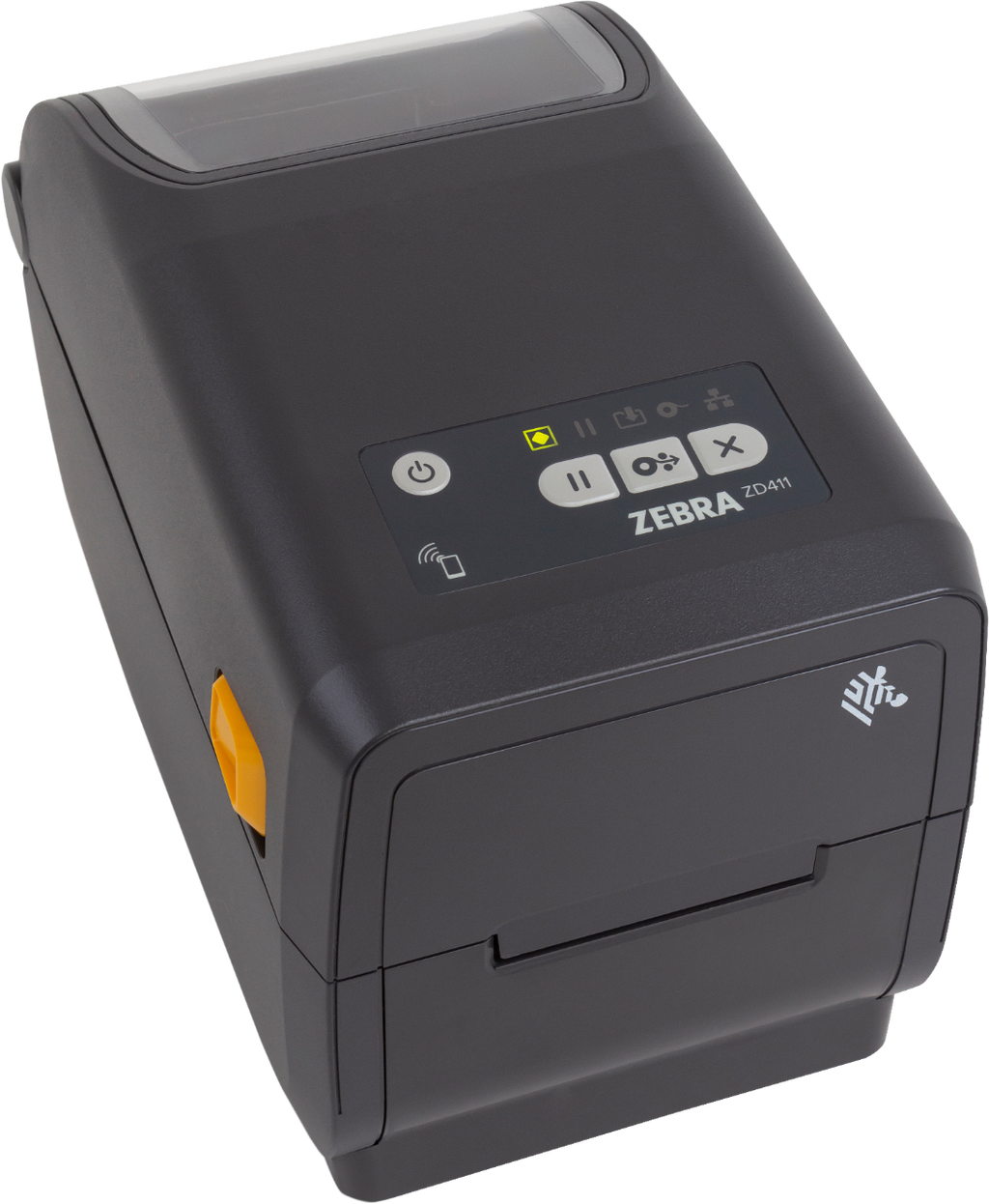

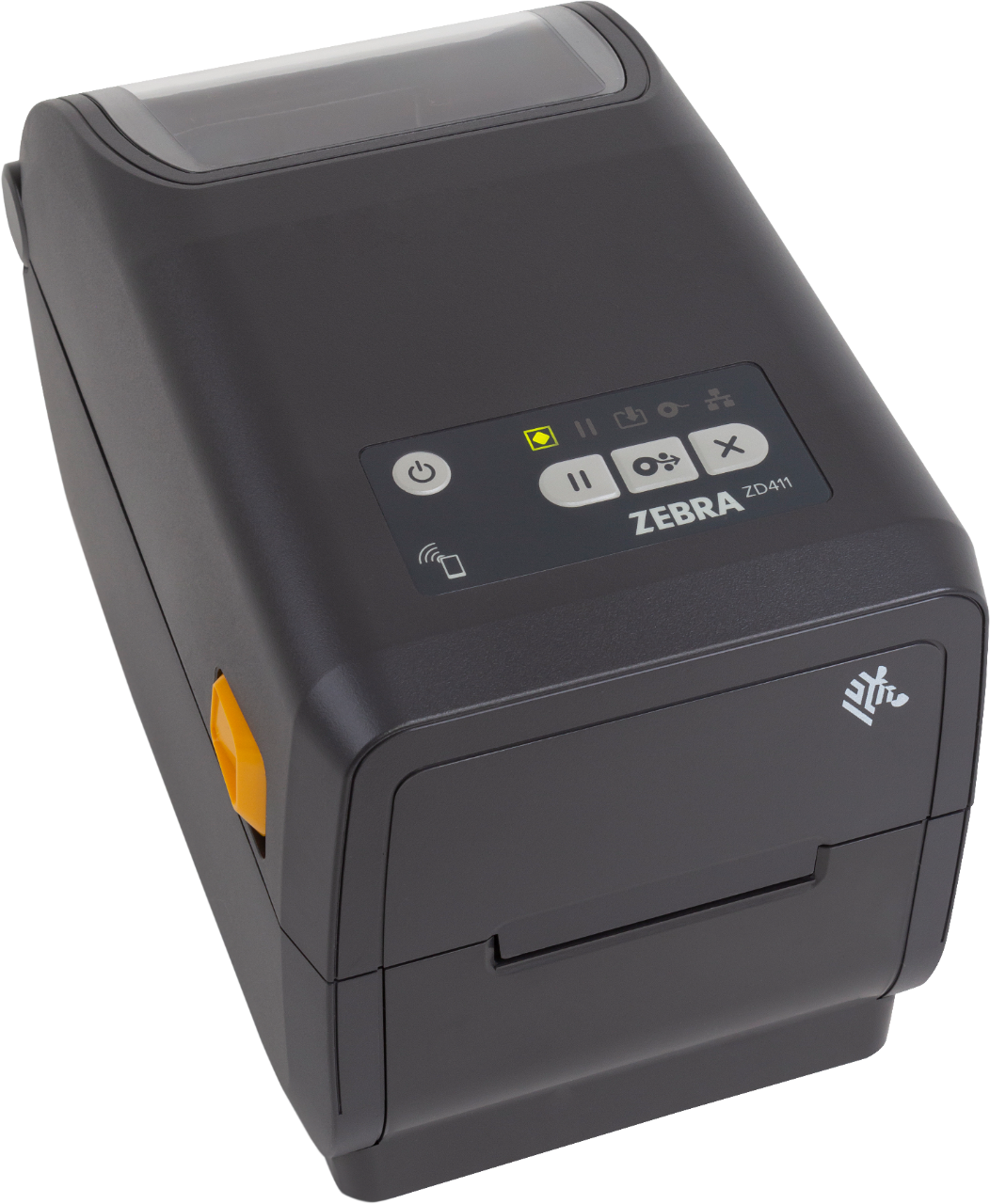

The ZD411t 2-inch thermal transfer desktop printer delivers the features, flexibility and security customers need for years to come. Featuring a new architecture and Zebra’s exclusive Print DNA software suite, the ZD411t allows easy setup, operation and maintenance.
Key features
- Replaces the legacy TLP2824 Plus, offering more functions and capabilities powered by an innovative architecture that can perform more operations simultaneously, supports our Print DNA suite of software, and is ready for what's next.
- Operates with ease with the five LED icons to take the guesswork out of printer status, and has a three-button user interface for added functionality and control.
- Connectivity includes USB and USB Host standard, and optional Ethernet, Serial and dual wireless radio, Wi-Fi 6 (802.11ax) with Bluetooth 5.3 or Wi-Fi 5 (802.11ac) with Bluetooth 4.1, factory- or field-installable.
- Zebra's exclusive Print DNA software suite makes it easy to get printers up and running quickly. And PrintSecure makes it easy to shield printers from cyberattacks.
- Increase printer flexibility and use cases with options and accessories, including 300 dpi, desktop battery, peeler, cutter, keyboard display unit, and mounting plate.
Part numbers
| Part Number | Connectivity | Media handling |
|---|---|---|
| ZD4A022-T01E00EZ | Ethernet + BLE | Standard (none) |
| ZD4A022-T01M00EZ | Modular slot + BLE | Standard (none) |
| ZD4A022-T01W01EZ | Wi-Fi 5 + BT | Standard (none) |
| ZD4A022-T01X01EZ | Wi-Fi 6 + BT | Standard (none) |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Thermal transfer or direct thermal |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | 6 in/s (152 mm/s) |
| Maximum print width | 2.2 in (56 mm) |
| Connectivity | USB 2.0, USB Host; Bluetooth LE for the Zebra setup app; Ethernet, or a modular slot for field-installable Ethernet or Serial, by model; wireless models add Wi-Fi 6 (802.11ax) + Bluetooth 5.3 or Wi-Fi 5 (802.11ac) + Bluetooth 4.1 |
| Display | 5 status icons, 3-button interface |
| Media handling | Tear-off; peeler and cutter also field-installable |
| Memory | 512 MB flash; 256 MB SDRAM |
| Media width | 0.585–2.36 in (15–60 mm) |
| Maximum roll size | 5.00 in (127 mm) OD; 0.5 in and 1.0 in cores standard; 1.5, 2.0 and 3.0 in with optional adapters |
| Label length | 0.25–39.0 in (6.35–991 mm) |
| Media thickness | 0.0024–0.0075 in (0.06–0.19 mm); max in tear-off mode only |
| Media types | Roll or fan-fold; die-cut or continuous, with or without black mark; tag stock; receipt paper; wristbands |
| Ribbon | 74 m (243 ft) on 0.5 in cores, 1.34 in OD, 1:1 ribbon to media |
| Ribbon width | 1.3–2.24 in (33–58 mm) |
| Media sensors | Full-width movable reflective/black-mark sensor; multi-position transmissive/gap sensor |
| Programming languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Operating system | Link-OS; Zebra DNA |
| Dimensions | 9.56 x 5.46 x 6.66 in (242.9 x 138.7 x 169.2 mm) L x W x H |
| Weight | 3.59 lb (1.63 kg) |
| Operating temperature | 40–105 °F (4.4–41 °C) |
| Electrical | 100–240 VAC, 50–60 Hz, auto-detect; ENERGY STAR certified; optional 2750 mAh battery |
| Warranty | 2 years (Zebra) |
Download the ZD411t-203 spec sheet (PDF)
Warranty and support
Warranty: 2-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What is the difference between the ZD411d and ZD411t?
The ZD411d is direct thermal only, so it needs no ribbon. The ZD411t prints thermal transfer with a 74 m ribbon, or direct thermal without one.
What is the difference between the ZD411 and ZD611?
Both are 2-inch printers. The ZD611 prints faster (8 in/s at 203 dpi versus 6 in/s), has Ethernet standard, and the thermal transfer model adds a 4.3 in color touch display and a media dancer.
What label sizes fit?
Media from 0.585 to 2.36 in wide and 0.25 to 39 in long, such as 2 x 1 in and 2.25 x 1.25 in labels. It prints up to 2.2 in wide at 203 dpi.
What roll size and core fit?
Rolls up to 5 in outer diameter on 0.5 in or 1 in cores, and 1.5, 2 or 3 in cores with optional adapters.
What connectivity does it have?
Every ZD411 has USB 2.0 and USB Host, plus Bluetooth LE for the Zebra setup app. Ethernet, Serial and dual-radio Wi-Fi with Bluetooth are available by model or as field-installable kits. Wireless models on this page ship with Wi-Fi 6 (802.11ax) + Bluetooth 5.3 or Wi-Fi 5 (802.11ac) + Bluetooth 4.1.
What ribbons does it take?
74 m (243 ft) ribbons on 0.5 in cores, 1.3 to 2.24 in wide.
Can it run on battery?
Yes. An optional battery powers a full shift at maximum print speed, so the printer can go on a cart to the point of use.
What warranty does it have?
Zebra warrants ZD400 Series printers for 2 years from shipment. Zebra OneCare plans extend coverage.
What print resolutions does the Zebra ZD411t come in?
The Zebra ZD411t comes in 203 dpi and 300 dpi. This page lists the 203 dpi models. See Zebra ZD411t — 300 dpi Models.
Should I choose 203 dpi or 300 dpi?
203 dpi (8 dots/mm) is the standard for shipping labels, barcodes and most product labels. 300 dpi (12 dots/mm) prints sharper small text, small barcodes, 2D codes and logos, so it suits small labels such as electronics, healthcare and jewelry labels. 600 dpi (24 dots/mm) is for very small, high-detail labels.
