Also available: Zebra ZD421t-HC — 203 dpi Models
Description

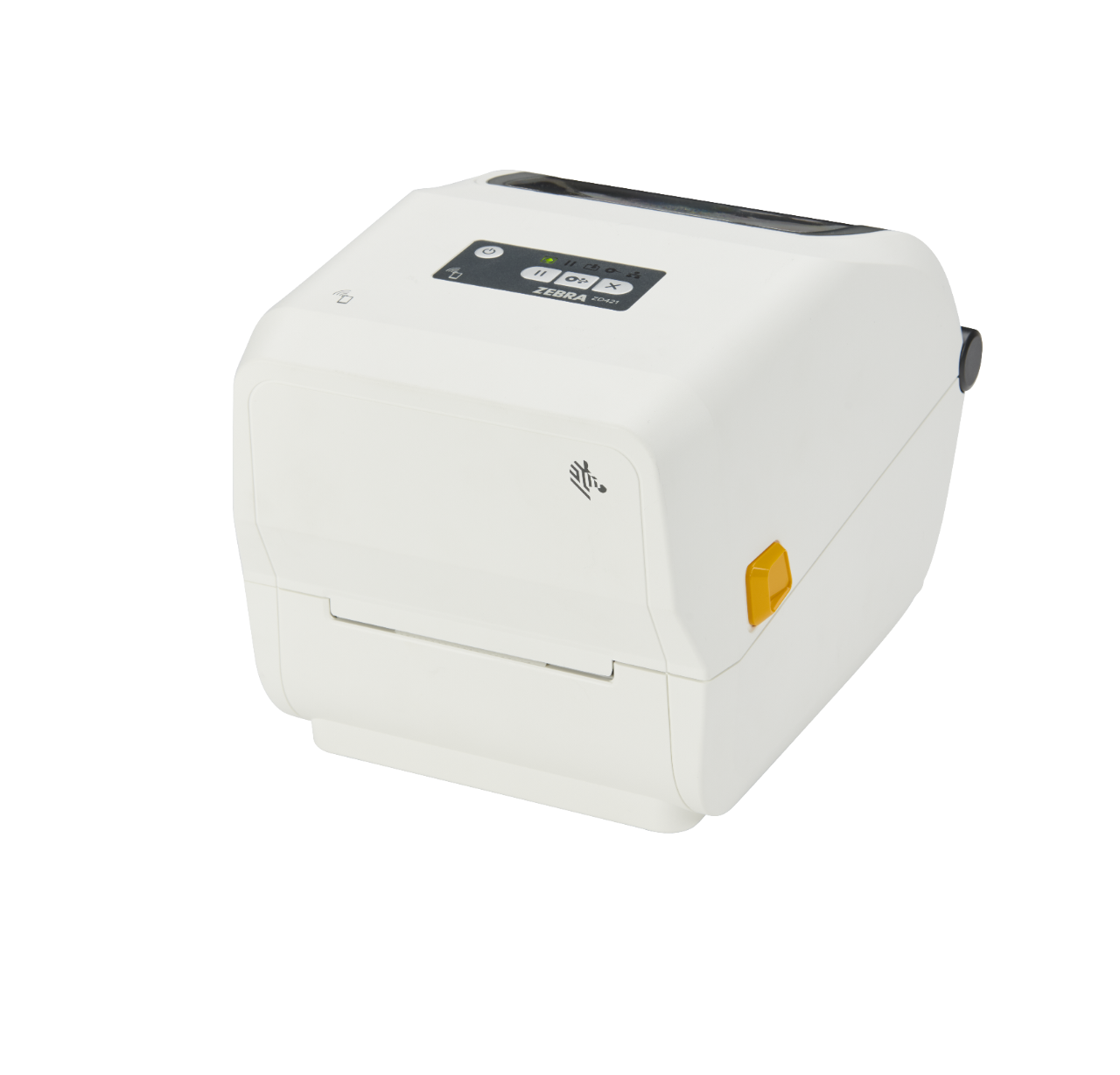

The ZD421t-HC thermal transfer advanced desktop printer is built specifically for healthcare environments, including disinfectant-ready white plastics, UV-resistant housing with sealed button interface, and an IEC 60601-1 compliant power supply.
Key features
- Replaces the legacy GK Series and ZD420 Series, offering more functions and capabilities powered by a new innovative architecture that can run more tasks, perform more operations simultaneously and is ready for what's next.
- Operates with ease with the five LED icons to take the guesswork out of printer status, and has a three-button user interface for added functionality and control.
- Connectivity includes USB and USB Host standard, and optional Ethernet, Serial and dual wireless radio, Wi-Fi 6 (802.11ax) with Bluetooth 5.3 or Wi-Fi 5 (802.11ac) with Bluetooth 4.1, factory- or field-installable.
- Zebra's exclusive Print DNA software suite makes it easy to get printers up and running quickly. And PrintSecure makes it easy to shield printers from cyberattacks.
- Increase printer flexibility and use cases with options and accessories, including 300 dpi, desktop battery and carrying case, peeler, cutter, keyboard display unit, mounting plate, and enclosed power supply.
Part numbers
| Part Number |
|---|
| ZD4AH43-301E00EZ |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Thermal transfer or direct thermal |
|---|---|
| Resolution | 300 dpi (12 dots/mm) |
| Maximum print speed | 4 in/s (102 mm/s) |
| Maximum print width | 4.27 in (108 mm) |
| Healthcare features | Healthcare white housing; disinfectant-ready plastics with sealed button interface; UV-resistant housing for UV cleaning; IEC 60601-1 certified power supply |
| Connectivity | USB 2.0, USB Host; Bluetooth LE for the Zebra setup app; Ethernet |
| Display | 5 status icons, 3-button interface |
| Media handling | Tear-off; peeler and cutter available as field-installable options |
| Memory | 512 MB flash; 256 MB SDRAM |
| Media width | 0.585–4.41 in (15–112 mm) |
| Maximum roll size | 5.00 in (127 mm) OD; 0.5 in and 1.0 in cores standard; 1.5, 2.0 and 3.0 in with optional adapters |
| Label length | 0.25–39.0 in (6.4–991 mm) |
| Media thickness | 0.003–0.0075 in (0.08–0.19 mm); max in tear-off mode only |
| Media types | Roll or fan-fold; die-cut or continuous, with or without black mark; tag stock; receipt paper; wristbands |
| Ribbon | 300 m (984 ft) on 1 in cores, 2.6 in OD, 1:4 ribbon to media; or 74 m (243 ft) on 0.5 in cores, 1:1 |
| Ribbon width | 1.33–4.3 in (33.8–109.2 mm) |
| Media sensors | Full-width movable reflective/black-mark sensor; multi-position transmissive/gap sensor |
| Programming languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Operating system | Link-OS; Zebra DNA |
| Dimensions | 10.5 x 8.0 x 7.44 in (267 x 202 x 189 mm) L x W x H |
| Weight | 4.52 lb (2.05 kg) |
| Operating temperature | 40–105 °F (4.4–41 °C) |
| Electrical | 100–240 VAC, 50–60 Hz, auto-detect; ENERGY STAR certified; optional 2750 mAh battery; IEC 60601-1 certified power supply |
| Warranty | 2 years (Zebra) |
Download the ZD421t-HC-300 spec sheet (PDF)
Warranty and support
Warranty: 2-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What makes the ZD421t-HC a healthcare printer?
It has disinfectant-ready white plastics, a sealed button interface, a UV-resistant housing that supports UV cleaning, and an IEC 60601-1 certified power supply for use in healthcare facilities.
What is the difference between the ZD421c, ZD421d and ZD421t?
The ZD421d is direct thermal only, so it needs no ribbon. The ZD421t takes standard 300 m or 74 m ribbon rolls. The ZD421c loads a 74 m ribbon cartridge in seconds, and a smart chip reports when it needs replacing. The ZD421t and ZD421c also print direct thermal without a ribbon.
Which Zebra printers does the ZD421 replace?
Zebra positions the ZD421 as the successor to the GK Series and ZD420 Series desktop printers.
What can it print in a hospital or clinic?
Prescription labels, lab and specimen labels, patient ID wristbands, blood and IV bag labels, patient record labels and asset labels.
What roll size and core fit?
Rolls up to 5 in outer diameter on 0.5 in or 1 in cores, and 1.5, 2 or 3 in cores with optional adapters.
What connectivity does it have?
Every ZD421 has USB 2.0 and USB Host, plus Bluetooth LE for the Zebra setup app. Ethernet, Serial and dual-radio Wi-Fi with Bluetooth are available by model or as field-installable kits.
Which programming languages does it support?
ZPL II, EPL 2, XML, ZBI and PDF Direct. The Zebra DNA Printer Emulations app adds languages from other printer brands.
What ribbons does it take?
Standard 300 m (984 ft) ribbons on 1 in cores, or 74 m (243 ft) ribbons on 0.5 in cores, 1.33 to 4.3 in wide. Wax, wax-resin and resin ribbons are available for different label materials.
Can it run on battery?
Yes. An optional 2750 mAh battery powers a full shift at maximum print speed, and an optional carrying case takes the printer to the point of application.
What warranty does it have?
Zebra warrants ZD400 Series printers for 2 years from shipment. Zebra OneCare plans extend coverage.
What print resolutions does the Zebra ZD421t-HC come in?
The Zebra ZD421t-HC comes in 203 dpi and 300 dpi. This page lists the 300 dpi models. See Zebra ZD421t-HC — 203 dpi Models.
Should I choose 203 dpi or 300 dpi?
203 dpi (8 dots/mm) is the standard for shipping labels, barcodes and most product labels. 300 dpi (12 dots/mm) prints sharper small text, small barcodes, 2D codes and logos, so it suits small labels such as electronics, healthcare and jewelry labels. 600 dpi (24 dots/mm) is for very small, high-detail labels.
Compatible supplies & accessories
Ribbons that fit this printer: 74 m (243 ft) on 0.5 in cores or 300 m (984 ft) on 1 in cores, plus thermal transfer and direct thermal labels up to 4.41 in wide on 0.5 in or 1 in cores, 5 in max roll.
-
