Description

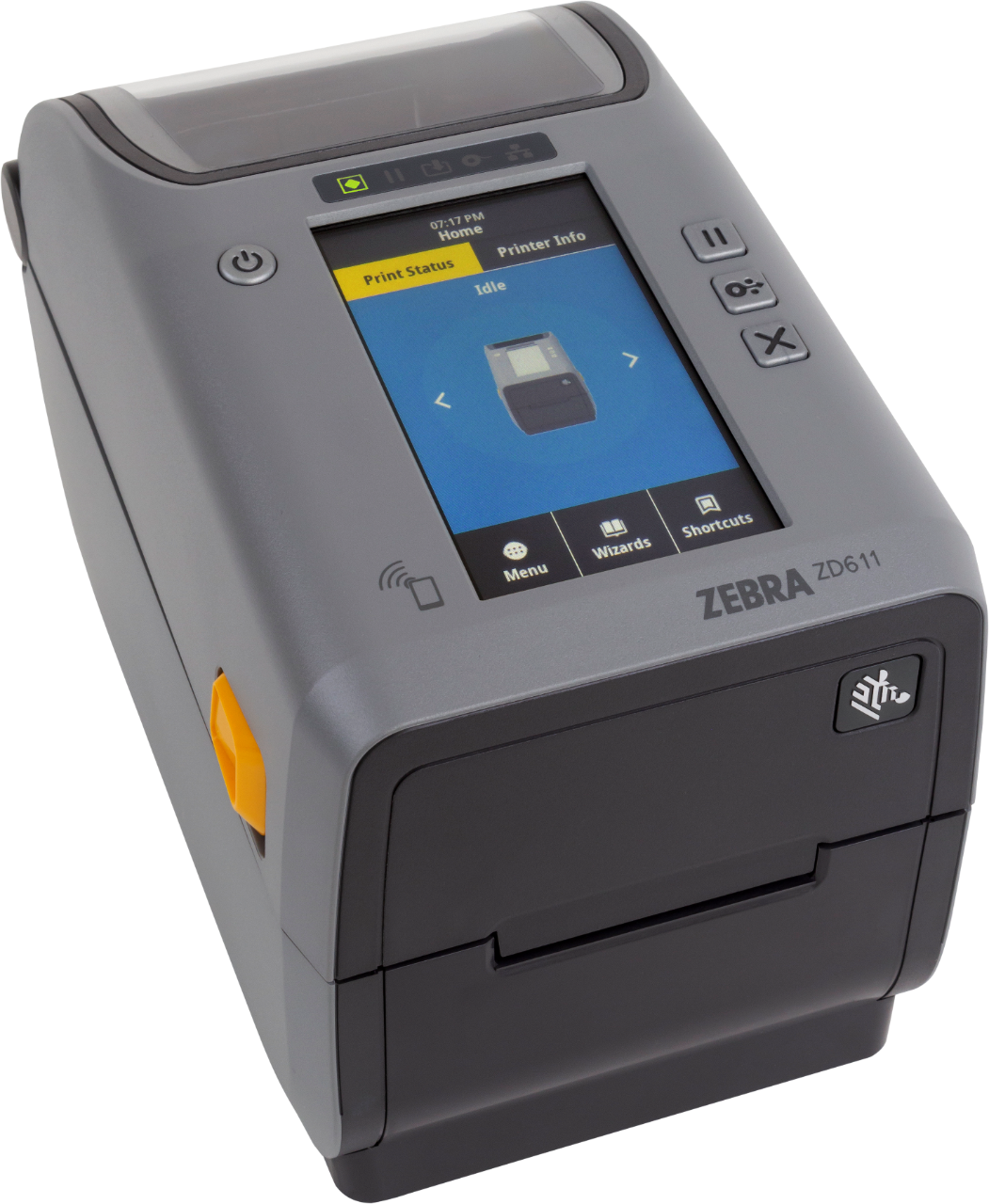

The ZD611R RFID thermal transfer desktop printer delivers premium features, maximum performance, RFID capabilities and unmatched security for years of use. It includes the Print DNA software suite, making it easy to set up, operate, manage and maintain.
Key features
- The ZD611R uses Zebra's own RE40 RFID module with adaptive encoding technology for excellent media flexibility and simple RFID calibration. Zebra gives you the industry's broadest, field-proven RFID portfolio for unmatched accuracy and interoperability.
- Standard on the ZD611R model, the 4.3 in. full color LCD touch display makes it easy to use with step-by-step setup wizards, troubleshooting animations, media-loading and calibration guidance. The display changes color to show printer status at a glance.
- Connectivity includes Ethernet, USB and USB Host standard. Optional connectivity includes Serial, and dual wireless radio, Wi-Fi 6 (802.11ax) with Bluetooth 5.3 or Wi-Fi 5 (802.11ac) with Bluetooth 4.1, factory- or field-installable.
- Zebra's exclusive Print DNA software suite makes it easy to get printers up and running quickly. And PrintSecure makes it easy to shield printers from cyberattacks.
- Increase printer flexibility and use cases with options and accessories, including 300 dpi, desktop battery, peeler, cutter, keyboard display unit, and mounting plate.
Part numbers
| Part Number | Connectivity |
|---|---|
| ZD6A122-T01BR1EZ | Wi-Fi 5 + BT |
| ZD6A122-T01ER1EZ | BLE only |
| ZD6A122-T01QR1EZ | Wi-Fi 6 + BT |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Thermal transfer or direct thermal |
|---|---|
| RFID | Zebra RE40 UHF reader/encoder; EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID tags; adaptive encoding (no placement guidelines); minimum tag pitch 0.6 in (16 mm) |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | 8 in/s (203 mm/s) |
| Maximum print width | 2.2 in (56 mm) |
| Connectivity | Ethernet, USB 2.0, USB Host; Bluetooth LE for the Zebra setup app; Serial field-installable; wireless models add Wi-Fi 6 (802.11ax) + Bluetooth 5.3 or Wi-Fi 5 (802.11ac) + Bluetooth 4.1 |
| Display | 4.3 in color touch LCD (480 x 272) with 3-button interface |
| Media handling | Tear-off; peeler and cutter also field-installable |
| Memory | 512 MB flash; 256 MB SDRAM |
| Media width | 0.585–2.36 in (15–60 mm) |
| Maximum roll size | 5.00 in (127 mm) OD; 0.5 in and 1.0 in cores standard; 1.5, 2.0 and 3.0 in with optional adapters |
| Label length | 0.25–39.0 in (6.35–991 mm) |
| Media thickness | 0.0024–0.0075 in (0.06–0.19 mm); max in tear-off mode only |
| Media types | RFID labels, tags and wristbands; Roll or fan-fold; die-cut or continuous, with or without black mark; tag stock; receipt paper; wristbands |
| Ribbon | 74 m (243 ft) on 0.5 in cores, 1.34 in OD, 1:1 ribbon to media |
| Ribbon width | 1.3–2.24 in (33–58 mm) |
| Media sensors | Full-width movable reflective/black-mark sensor; multi-position transmissive/gap sensor |
| Programming languages | ZPL II (with RFID commands), EPL 2, XML, ZBI, PDF Direct |
| Operating system | Link-OS; Zebra DNA |
| Dimensions | 9.56 x 5.46 x 6.66 in (242.9 x 138.7 x 169.2 mm) L x W x H |
| Weight | 3.59 lb (1.63 kg) |
| Operating temperature | 40–105 °F (4.4–41 °C) |
| Electrical | 100–240 VAC, 50–60 Hz, auto-detect; ENERGY STAR certified; optional 2750 mAh battery |
| Warranty | 2 years (Zebra) |
Download the ZD611R-203 spec sheet (PDF)
Warranty and support
Warranty: 2-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What RFID tags can the ZD611R encode?
UHF tags compatible with EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID, with a minimum tag pitch of 0.6 in. It prints and encodes labels, tags and wristbands up to 2.36 in wide in one pass.
Do I need to calibrate for each RFID label?
No. Adaptive encoding finds the best encoding position on the inlay, so there are no complex placement guidelines.
What label sizes fit?
Media from 0.585 to 2.36 in wide and 0.25 to 39 in long, such as 2 x 1 in and 2.25 x 1.25 in labels. It prints up to 2.2 in wide at 203 dpi.
What roll size and core fit?
Rolls up to 5 in outer diameter on 0.5 in or 1 in cores, and 1.5, 2 or 3 in cores with optional adapters.
What connectivity does it have?
Every ZD611R has Ethernet, USB 2.0 and USB Host, plus Bluetooth LE for the Zebra setup app. Serial and dual-radio Wi-Fi with Bluetooth are available by model or as field-installable kits. Wireless models on this page ship with Wi-Fi 6 (802.11ax) + Bluetooth 5.3 or Wi-Fi 5 (802.11ac) + Bluetooth 4.1.
What ribbons does it take?
74 m (243 ft) ribbons on 0.5 in cores, 1.3 to 2.24 in wide.
Can it run on battery?
Yes. An optional battery powers a full shift at maximum print speed, so the printer can go on a cart to the point of use.
What warranty does it have?
Zebra warrants ZD600 Series printers for 2 years from shipment. Zebra OneCare plans extend coverage.
What print resolutions does the Zebra ZD611R come in?
The Zebra ZD611R comes in 203 dpi and 300 dpi. This page lists the 203 dpi models. See Zebra ZD611R — 300 dpi Models.
Should I choose 203 dpi or 300 dpi?
203 dpi (8 dots/mm) is the standard for shipping labels, barcodes and most product labels. 300 dpi (12 dots/mm) prints sharper small text, small barcodes, 2D codes and logos, so it suits small labels such as electronics, healthcare and jewelry labels. 600 dpi (24 dots/mm) is for very small, high-detail labels.
