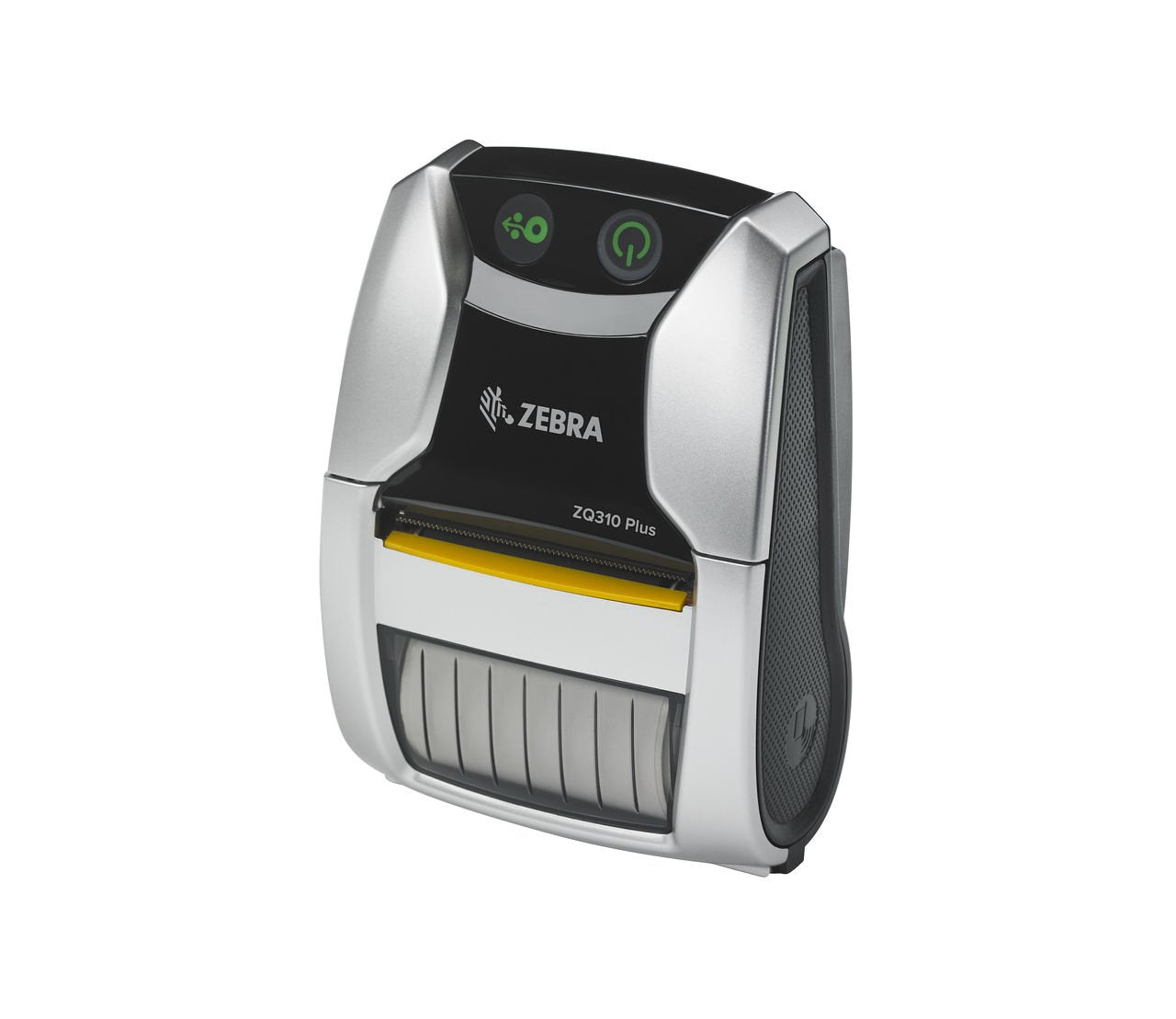

Description
The ZQ300 Plus Series supports receipt and label printing to ring up sales and complete markups, markdowns and shelf audits in your retail store. The ZQ300 Plus models require new, different firmware and drivers from the legacy ZQ300 models.
Key features
- More Versatility for More Value: The same printer used to print receipts can also print shelf labels, item markdowns and markups. Pair with any Bluetooth-enabled Zebra handheld computer or tablet, or any Android, iOS, Windows CE and Windows Mobile device.
- Superior Industrial Design – A slim, lightweight design makes it easy to use all shift long, in tight spaces. The sleek look fits right into a retail store, yet you get the durability of IP54 sealing, a 5 ft./1.5 m drop spec and a 500-drop tumble spec.
- Fast printing with the latest wireless connections: Bluetooth 4.1 Classic and Low Energy plus support for WLAN 802.11ac and the latest Wi-Fi security protocols provide fast and secure connections whether connected to a host mobile device or Wi-Fi network.
- Full shift battery life: PowerPrecision+ 2280 mAh battery, sleep mode and Power Smart Print Technology™ minimize power requirements. The user-replaceable battery means printers won't need to be taken out of service due to a dead battery.
- Bluetooth Remote Management: Real-time visibility and remote management of all ZQ300 Plus printers connected to any Android device via Bluetooth, allowing you to update, monitor and troubleshoot your mobile printers all from a central location.
Part numbers
| Part Number |
|---|
| ZQ31-A0W03R0-00 |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Direct thermal |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | Up to 4 in/s (100 mm/s) |
| Maximum print width | 1.89 in (48 mm) |
| Media width | 2.28 in (58 mm); spacers support 2 in (50.8 mm) |
| Maximum roll size | 1.57 in (40 mm) OD |
| Media thickness | 0.0021–0.0063 in (0.053–0.16 mm) |
| Media types | Receipt paper, labels and linerless labels (direct thermal) |
| Minimum receipt length | 0.49 in (12.5 mm); maximum unconstrained in line mode |
| Media sensors | Black mark; gap sensing optional |
| Connectivity | Bluetooth 4.1 (Classic and BLE), USB-C, NFC tag; optional dual radio with 802.11ac Wi-Fi and Bluetooth 5.2 |
| Host OS supported | Android, Apple iOS and Windows |
| User interface | LEDs |
| Memory | 128 MB RAM; 256 MB flash |
| Battery | PowerPrecision+ Li-Ion, 2280 mAh, 7.2 V, user-replaceable |
| Programming languages | CPCL, ZPL |
| Durability | IP54; 5 ft (1.5 m) drop; 500 tumbles from 3.3 ft (1 m); MIL-STD 810 vibration |
| Housing | Silver and black color scheme for retail floors |
| Dimensions | 5.12 x 3.68 x 1.95 in (130 x 93.5 x 49.5 mm) |
| Weight with battery | 0.81 lb (0.37 kg) |
| Operating temperature | 5–122 °F (-15 to 50 °C) |
| Warranty | 1 year (Zebra) |
Download the ZQ310 Plus Indoor spec sheet (PDF)
Warranty and support
Warranty: 1-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What is the difference between the indoor and outdoor models?
Both have IP54 sealing and the same print engine. The outdoor model has a dark grey, scuff-resistant housing for field work; the indoor model has a silver and black finish for retail floors.
What is the difference between the ZQ310 Plus and ZQ320 Plus?
The ZQ310 Plus prints 2 in (58 mm) receipts and labels; the ZQ320 Plus prints 3 in (80 mm). Both print up to 4 in/s.
Can I use my legacy ZQ300 firmware and drivers?
No. ZQ300 Plus models need new firmware and drivers that differ from the legacy ZQ300 models.
What media does it take?
Receipt paper, labels and linerless labels (direct thermal), 2.28 in (58 mm) wide, on rolls up to 1.57 in (40 mm) outer diameter.
How does it connect?
Bluetooth 4.1 (Classic and BLE), USB-C, NFC tag; optional dual radio with 802.11ac Wi-Fi and Bluetooth 5.2.
What warranty does it have?
Zebra warrants the ZQ310 Plus Indoor against defects in workmanship and materials for 1 year from shipment. Zebra OneCare plans extend coverage.
