Description

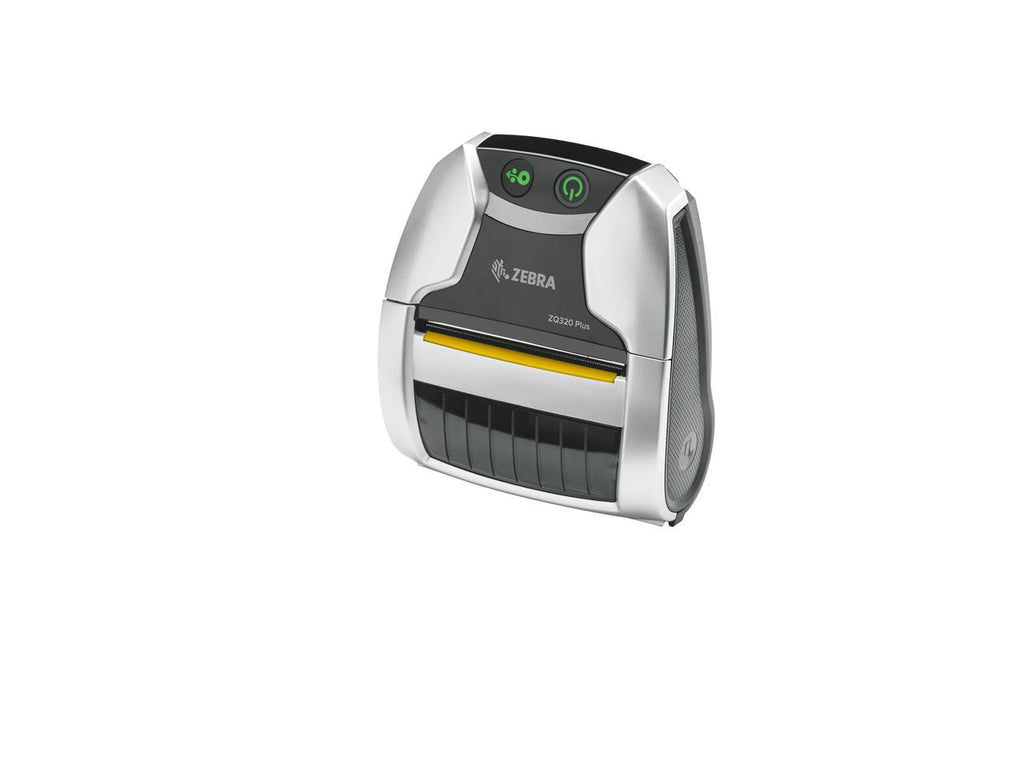

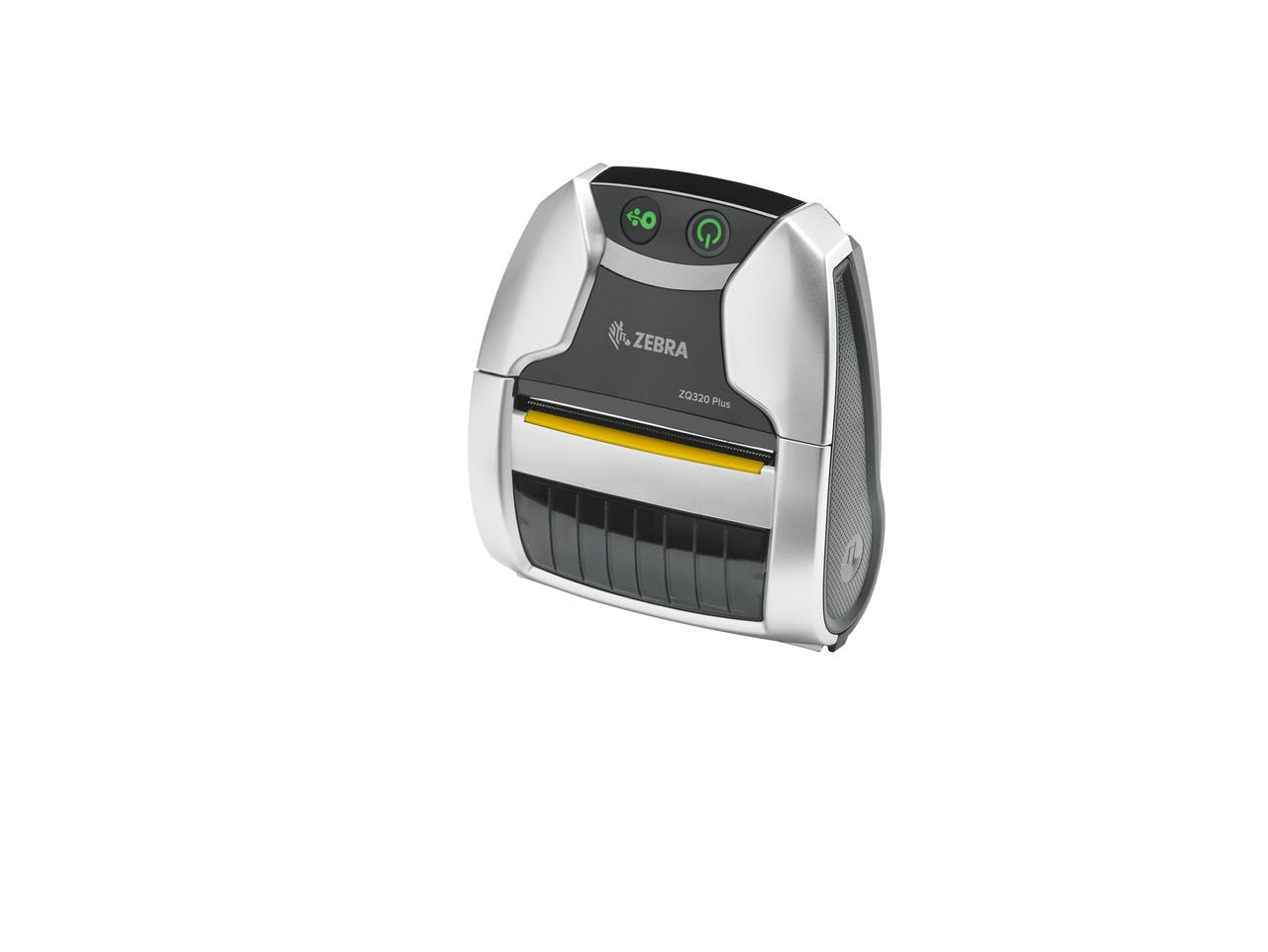

The ZQ300 Plus Series outdoor model can handle the elements, generate high quality receipts and labels and guarantee power for a full shift in the field. The ZQ300 Plus models require new, different firmware and drivers from the legacy ZQ300 models.
Key features
- More Versatility for More Value: Reliable high-quality printing of receipts and labels, even in demanding outdoor conditions. Pair with any Bluetooth-enabled Zebra handheld computer or tablet, or any Android, iOS, Windows CE and Windows Mobile device.
- Superior Industrial Design –A slim, lightweight design makes it easy to use all shift long, in tight spaces. In addition to a scuff resistant housing, it offers IP54 sealing, a 5 ft./1.5 m drop specification and a 500-drop tumble specification.
- Faster, Easier and Highly Reliable Bluetooth Connections: Enjoy superior printing speeds and power efficiency with Bluetooth 4.1 Classic and Low Energy.
- Full shift battery life: PowerPrecision+ 2280 mAh battery, sleep mode and Power Smart Print Technology™ minimize power requirements. The user-replaceable battery means printers won't need to be taken out of service due to a dead battery.
- Bluetooth Remote Management: Real-time visibility and remote management of all ZQ300 Plus printers connected to any Android device via Bluetooth, allowing you to update, monitor and troubleshoot your mobile printers all from a central location.
Part numbers
| Part Number |
|---|
| ZQ32-A0E04T0-00 |
| ZQ32-A0E14T0-00 |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Direct thermal |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | Up to 4 in/s (100 mm/s) |
| Maximum print width | 2.83 in (72 mm) |
| Media width | 3.15 in (80 mm); spacers support 3 in (76 mm) |
| Maximum roll size | 1.57 in (40 mm) OD |
| Media thickness | 0.0021–0.0063 in (0.053–0.16 mm) |
| Media types | Receipt paper, labels and linerless labels (direct thermal) |
| Minimum receipt length | 0.49 in (12.5 mm); maximum unconstrained in line mode |
| Media sensors | Black mark; gap sensing optional |
| Connectivity | Bluetooth 4.1 (Classic and BLE), USB-C, NFC tag; optional dual radio with 802.11ac Wi-Fi and Bluetooth 5.2 |
| Host OS supported | Android, Apple iOS and Windows |
| User interface | LEDs |
| Memory | 128 MB RAM; 256 MB flash |
| Battery | PowerPrecision+ Li-Ion, 2280 mAh, 7.2 V, user-replaceable |
| Programming languages | CPCL, ZPL |
| Durability | IP54; 5 ft (1.5 m) drop; 500 tumbles from 3.3 ft (1 m); MIL-STD 810 vibration |
| Housing | Dark grey, scuff-resistant exterior for outdoor use |
| Dimensions | 5.12 x 4.63 x 1.95 in (130 x 117.7 x 49.5 mm) |
| Weight with battery | 0.95 lb (0.43 kg) |
| Operating temperature | 5–122 °F (-15 to 50 °C) |
| Warranty | 1 year (Zebra) |
Download the ZQ320 Plus Outdoor spec sheet (PDF)
Warranty and support
Warranty: 1-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What is the difference between the indoor and outdoor models?
Both have IP54 sealing and the same print engine. The outdoor model has a dark grey, scuff-resistant housing for field work; the indoor model has a silver and black finish for retail floors.
What is the difference between the ZQ310 Plus and ZQ320 Plus?
The ZQ310 Plus prints 2 in (58 mm) receipts and labels; the ZQ320 Plus prints 3 in (80 mm). Both print up to 4 in/s.
Can I use my legacy ZQ300 firmware and drivers?
No. ZQ300 Plus models need new firmware and drivers that differ from the legacy ZQ300 models.
What media does it take?
Receipt paper, labels and linerless labels (direct thermal), 3.15 in (80 mm) wide, on rolls up to 1.57 in (40 mm) outer diameter.
How does it connect?
Bluetooth 4.1 (Classic and BLE), USB-C, NFC tag; optional dual radio with 802.11ac Wi-Fi and Bluetooth 5.2.
What warranty does it have?
Zebra warrants the ZQ320 Plus Outdoor against defects in workmanship and materials for 1 year from shipment. Zebra OneCare plans extend coverage.
