- Direct thermal only: this printer cannot use a ribbon. Use direct thermal labels; thermal transfer labels and ribbons will not work.
- Not TAA compliant (standard model). For government orders that require TAA, choose a TAA model or ask us before ordering.
Description

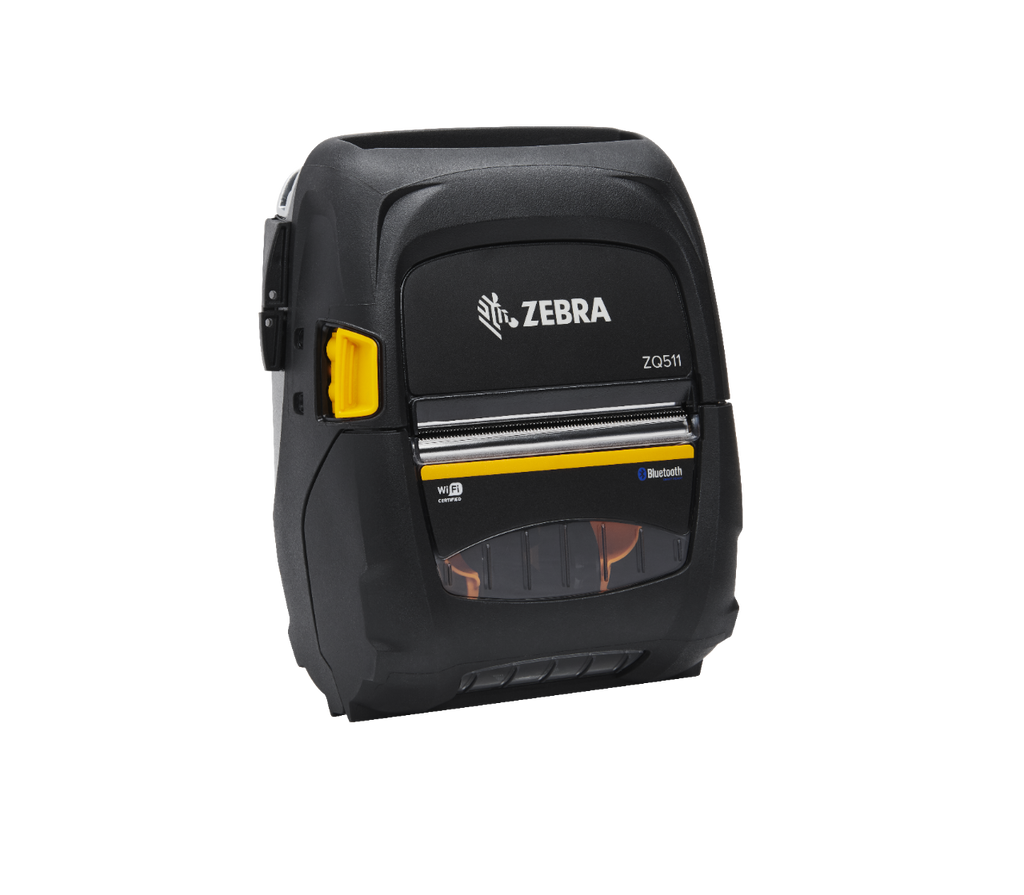

Zebra's ZQ511 mobile printer works as hard as you do. Ideal for harsh, demanding applications requiring protection against shock/drop/vibration, dust and liquid. Prints 3-inch receipts and labels on the go.
Key features
- Designed and certified to meet MIL-STD 810G for drop and shock and tumble tested per the IEC68-2-32 spec while providing an IP54 rating for protection against solid and liquid ingress.
- Your workforce will stay connected inside and outside the four walls with the latest connectivity options, such as WLAN 802.11ac and Bluetooth 4.1 Low Energy.
- Whether you are managing a fleet of printers or just a few, Print DNA's Mobile Device Management provides you status and visibility to printers that are in the field or in the next room.
- Optimized printing power with high capacity PowerPrecision battery and 'sleep mode' to preserve power when not in use provides peace of mind.
- Simplified design and friendly user interface make the ZQ511 easy to use for anyone, even for those wearing gloves.
Part numbers
| Part Number |
|---|
| ZQ51-BUE0000-00 |
| ZQ51-BUW0000-00 |
| ZQ51-BUE0010-00 |
| ZQ51-BUW0010-00 |
| ZQ51-BUW1000-00 |
| ZQ51-BUE1000-00 |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Direct thermal |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | Up to 5 in/s (127 mm/s) with draft mode |
| Maximum print width | 2.83 in (72 mm) |
| Maximum print length | 39 in |
| Media width | 1.38–3.15 in (35–80 mm) |
| Maximum roll size | 2.0 in (51 mm) OD |
| Media thickness | 0.0023–0.0063 in (labels); up to 0.0055 in (tags and receipts) |
| Media types | Receipt, gap and black mark labels, tags, linerless |
| Media sensors | Black mark and gap |
| Connectivity | Bluetooth 4.1 (Classic and LE), USB 2.0 On-The-Go, NFC (Print Touch); 802.11ac Wi-Fi dual radio on Wi-Fi models |
| Host OS supported | Android, Apple iOS and Windows Mobile |
| Display | LCD with large battery and wireless status icons |
| Memory | 256 MB RAM; 512 MB flash |
| Battery | 3250 mAh PowerPrecision+ Li-Ion, removable; optional 6500 mAh extended battery |
| Programming languages | CPCL, ZPL, ZBI 2.x |
| Durability | IP54; MIL-STD 810G drop and shock; multiple 6.6 ft (2 m) drops to concrete; 1,300 tumbles from 3.3 ft (1 m) |
| Dimensions | 5.9 x 4.7 x 2.4 in (150 x 120 x 62 mm) |
| Weight with battery | 1.39 lb (0.63 kg) |
| Operating temperature | -4 to 131 °F (-20 to 55 °C) |
| Warranty | 2 years (Zebra); battery 1 year, printhead 6 months |
Download the ZQ511 spec sheet (PDF)
Warranty and support
Warranty: 2-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What is the difference between the ZQ511 and ZQ521?
The ZQ511 prints up to 2.83 in wide on 3 in media; the ZQ521 prints up to 4.09 in wide on media up to 4.45 in. Both are rugged, IP54-sealed and print up to 5 in/s.
How rugged is it?
MIL-STD 810G certified for drop and shock, IP54 sealed without a case, tolerant of repeated 6.6 ft (2 m) drops to concrete and 1,300 tumbles from 3.3 ft.
What media does it take?
Receipt, gap and black mark labels, tags, linerless, 1.38–3.15 in (35–80 mm) wide, on rolls up to 2.0 in (51 mm) outer diameter.
How does it connect?
Bluetooth 4.1 (Classic and LE), USB 2.0 On-The-Go, NFC (Print Touch); 802.11ac Wi-Fi dual radio on Wi-Fi models.
What warranty does it have?
Zebra warrants the ZQ511 against defects in workmanship and materials for 2 years from shipment (battery 1 year, printhead 6 months). Zebra OneCare plans extend coverage.
