Description

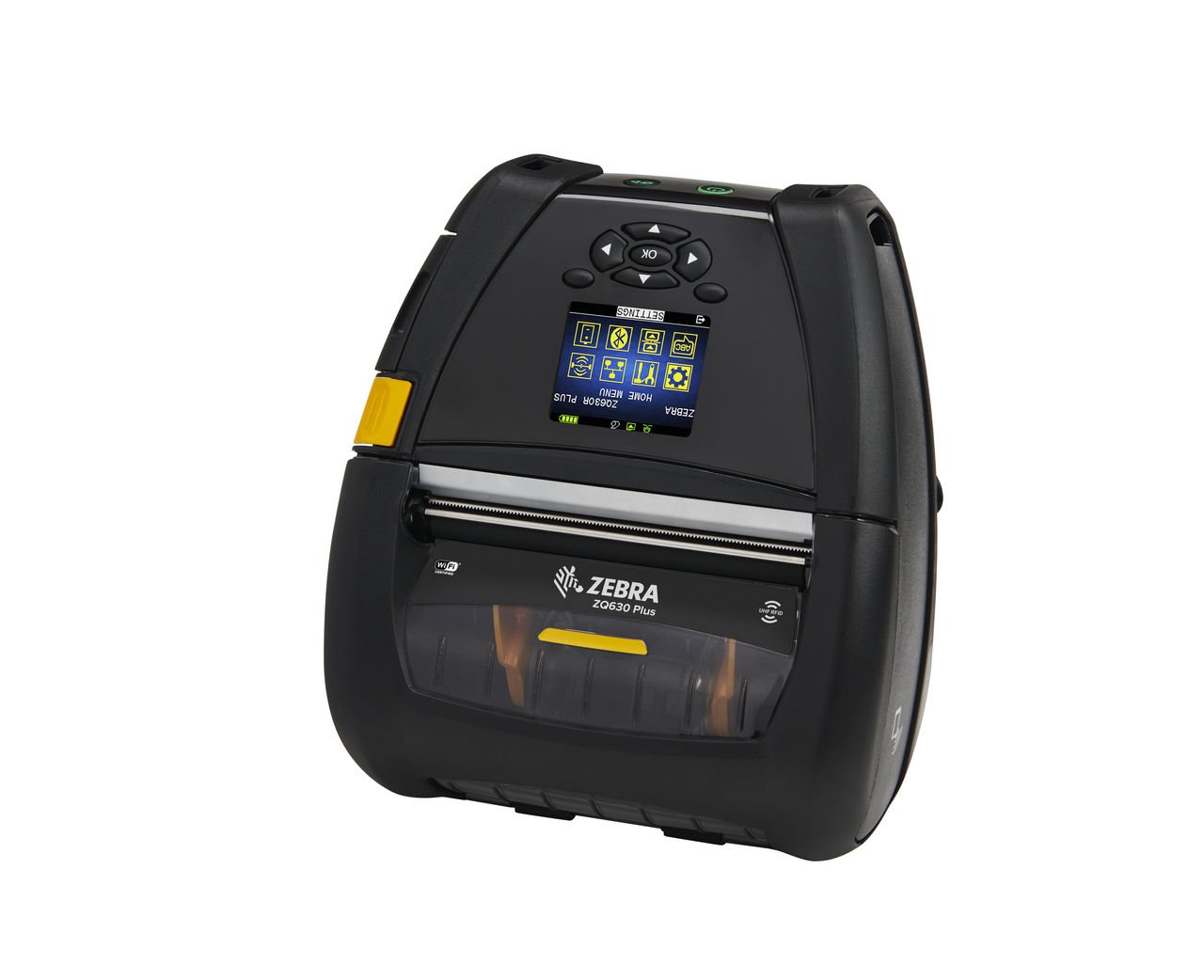

The 4-inch ZQ630 Plus RFID mobile printer helps users save time, reduce errors, print and encode RFID labels and tags on the spot with ease. The ZQ630 Plus RFID requires new, different firmware and drivers from the legacy ZQ630 RFID model.
Key features
- The industry’s first Wi-Fi 6 mobile printer with 802.11ax/Bluetooth 5.3 dual radio option and 802.11r fast roaming for faster, more dependable and more secure connections. Wi-Fi 5 (802.11ac)/Bluetooth 4.2 dual radio model also available.
- Gives workers the flexibility to print and encode RFID labels with ease, when and where needed. RFID setup is simple with automatic calibration features that eliminate complex RFID placements guidelines.
- The smart PowerPrecision+ battery is one of the highest capacity batteries in its class, powering every minute of the longest shifts. Battery metrics help better manage your batteries. And our Power Smart Print Technology™ reduces power consumption.
- Available accessories include multi-slot battery chargers, carrying options for added protection and single and quad-bay Ethernet cradles for easy remote management. The ZQ600 Plus Series is compatible with QLn accessories for a cost-effective upgrade.
- Powered by Link-OS, Zebra's robust printer operating system, and Print DNA, a combination of productivity, management, development and visibility tools that results in a superior printing experience.
Part numbers
| Part Number |
|---|
| ZQ63-RUXA006-00 |
| ZQ63-RUXA004-00 |
| ZQ63-RUWA004-00 |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Direct thermal |
|---|---|
| RFID | Integrated UHF reader/encoder; EPC Gen 2 V2, ISO/IEC 18000-63, RAIN RFID and Gen2X tags; adaptive encoding; minimum tag pitch 16 mm; requires black mark RFID media |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | Up to 4.5 in/s (115 mm/s) |
| Maximum print width | 4.1 in (104 mm) |
| Label length | 0.5–32 in (12.7–813 mm) or continuous |
| Media width | 2.0–4.4 in (51–112 mm) |
| Maximum roll size | 2.6 in (66 mm) OD on a 0.75 in (19 mm) or 1.375 in (34.9 mm) core |
| Media thickness | 3.2–5.5 mil tag stock or 7.5 mil label stock |
| Media types | Die-cut labels and tags, receipt paper, RFID, black mark |
| Media sensors | Black mark; label present sensor; peel and present mode |
| Connectivity | Bluetooth 4.2 (Classic and BLE), USB 2.0, RS-232 serial, NFC (Print Touch), 10/100 Ethernet via cradle; Wi-Fi 6 (802.11ax) with Bluetooth 5.3 or Wi-Fi 5 (802.11ac) dual radio on wireless models |
| Host OS supported | Android, Apple iOS and Windows Mobile |
| Display | Color display (288 x 240 pixels); 5-way navigation and two soft keys |
| Memory | 256 MB RAM; 512 MB flash |
| Battery | 6600 mAh (47.5 Wh) PowerPrecision+ Li-Ion, removable |
| Programming languages | CPCL, EPL, ZPL, ZBI 2.0 |
| Durability | IP54; multiple 6 ft (1.83 m) drops to concrete |
| Dimensions | 7.35 x 6.5 x 3.25 in (186.7 x 165.1 x 82.5 mm) L x W x H |
| Weight with battery | 2.45 lb (1.1 kg) |
| Operating temperature | -4 to 122 °F (-20 to 50 °C) |
| Accessories | Compatible with QLn Series accessories |
| Warranty | 1 year (Zebra) |
Download the ZQ630R Plus spec sheet (PDF)
Warranty and support
Warranty: 1-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What RFID tags can the ZQ630R Plus encode?
UHF tags compatible with EPC Gen 2 V2, ISO/IEC 18000-63, RAIN RFID and Gen2X, at a minimum pitch of 16 mm. It needs black mark RFID media; calibrate once per media type.
What is the difference between the ZQ610 Plus, ZQ620 Plus and ZQ630 Plus?
Print width: 1.9 in on the ZQ610 Plus, 2.8 in on the ZQ620 Plus and 4.1 in on the ZQ630 Plus. The ZQ630 Plus also has a 6600 mAh battery versus 3250 mAh.
Will my QLn accessories work?
Yes. The ZQ600 Plus Series is compatible with QLn accessories. ZQ600 Plus models need new firmware and drivers versus legacy ZQ600.
What media does it take?
Die-cut labels and tags, receipt paper, RFID, black mark, 2.0–4.4 in (51–112 mm) wide, on rolls up to 2.6 in (66 mm) outer diameter.
How does it connect?
Bluetooth 4.2 (Classic and BLE), USB 2.0, RS-232 serial, NFC (Print Touch), 10/100 Ethernet via cradle; Wi-Fi 6 (802.11ax) with Bluetooth 5.3 or Wi-Fi 5 (802.11ac) dual radio on wireless models.
What warranty does it have?
Zebra warrants the ZQ630R Plus against defects in workmanship and materials for 1 year from shipment. Zebra OneCare plans extend coverage.
