Description

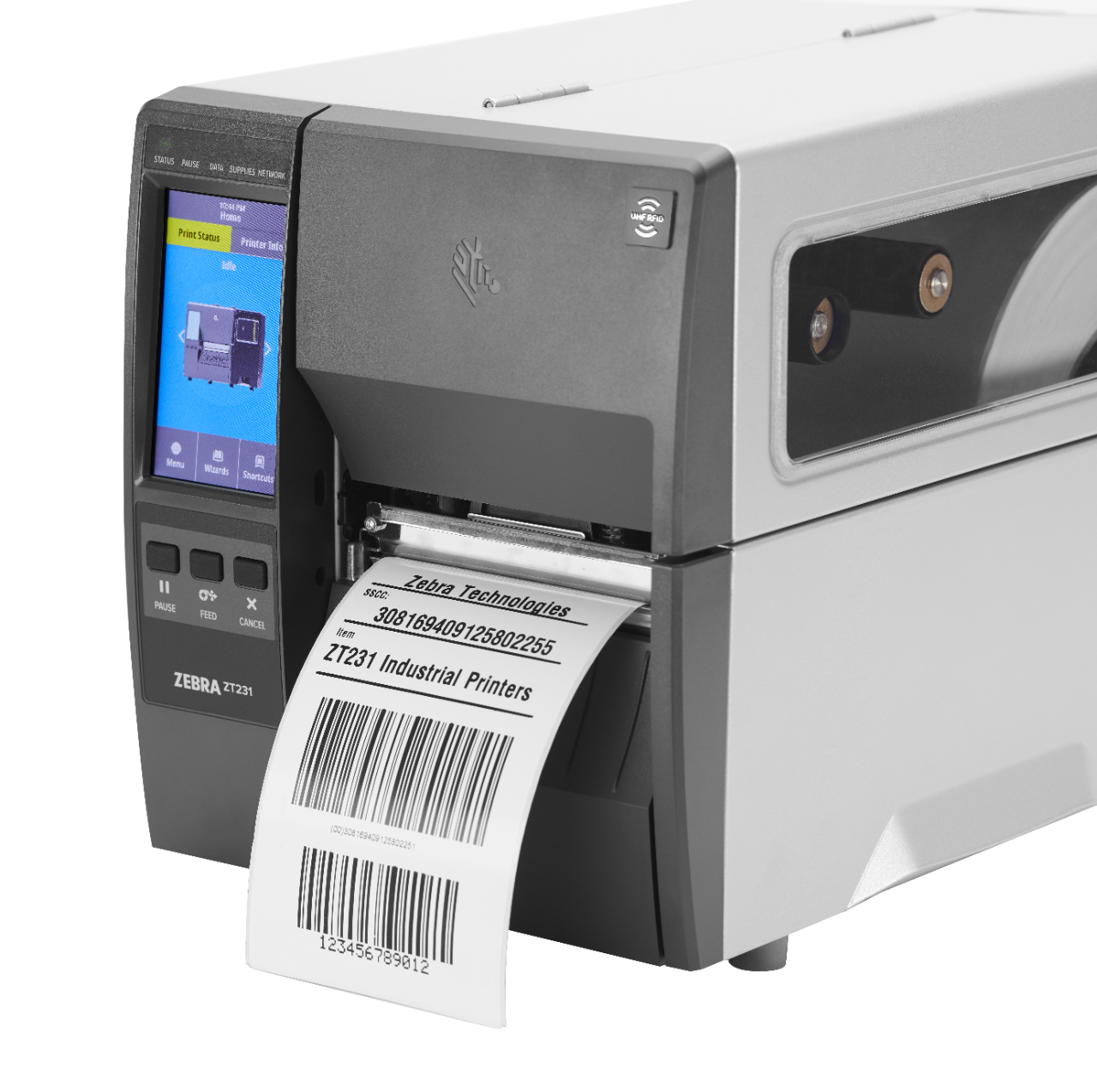

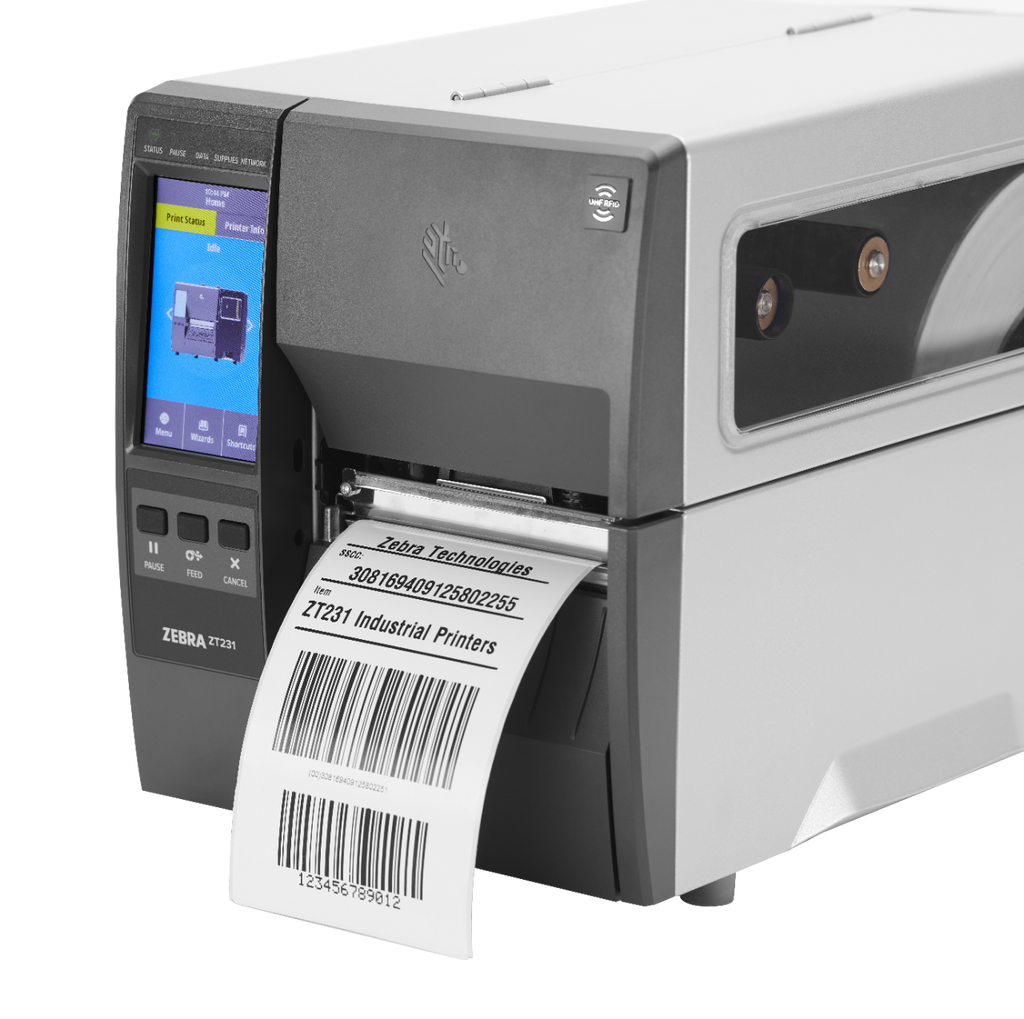

The ZT231 with RFID delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra.
Key features
- With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi.
- Reduce training time with the ZT231’s easy-to-use 4.3 in. full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger.
- Take advantage of Zebra’s robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard.
- Expand your printer’s capabilities with UHF RFID encoding and field-installable upgrades when you need them. Add options such as a cutter or peeler, or wireless connectivity.
- Take advantage of a variety of standard connectivity options including USB, Serial, Ethernet, BTLE and USB Host.
Part numbers
| Part Number |
|---|
| ZT23142-T0100AFZ |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Thermal transfer or direct thermal |
|---|---|
| RFID | UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID tags; Adaptive Encoding Technology selects optimum encode settings; RFID system field-upgradeable |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | 12 in/s (305 mm/s) |
| Maximum print width | 4.09 in (104 mm) |
| Maximum print length | 157 in (3988 mm) |
| Connectivity | USB 2.0, RS-232 Serial, 10/100 Ethernet, USB Host, Bluetooth Low Energy; 802.11ac Wi-Fi and second Ethernet option cards field-installable |
| Display | 4.3 in color resistive touch screen; three-color status LEDs |
| Media handling | Tear-off; front-mount cutter and peeler available |
| Memory | 256 MB SDRAM; 256 MB flash |
| Construction | Metal frame and metal enclosure; bi-fold media door with large clear window |
| Media width | 0.75–4.50 in (19.4–114 mm) |
| Maximum roll size | 8.0 in (203 mm) OD on a 3.0 in (76 mm) core; 6.0 in (152 mm) OD on a 1.0 in (25 mm) core |
| Minimum label length | Tear 0.7 in (18 mm); cutter 1 in (25 mm); peel 0.5 in (13 mm) |
| Media thickness | 0.003–0.010 in (0.076–0.25 mm) |
| Media types | RFID labels and tags; Continuous, die-cut, notch, black mark |
| Ribbon | 1,476 ft (450 m) on 1.0 in (25.4 mm) cores |
| Ribbon width | 1.57–4.33 in (40–110 mm) |
| Media sensors | Movable transmissive and reflective sensors |
| Programming languages | ZPL, ZPL II, EPL 2 (203 dpi models), optional ZBI 2.0 |
| Dimensions | 17 x 9.5 x 11 in (432 x 241 x 279 mm) L x W x H; 12.75 in (324 mm) H with liner take-up |
| Weight | 20 lb (9.1 kg); 24 lb (10.9 kg) with liner take-up |
| Operating temperature | Thermal transfer 40–105 °F (5–40 °C); direct thermal 32–105 °F (0–40 °C) |
| Electrical | 100–240 VAC, 50–60 Hz, auto-ranging (PFC); ENERGY STAR certified |
| Warranty | 1 year (Zebra) |
Download the ZT231R-203 spec sheet (PDF)
Warranty and support
Warranty: 1-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What RFID tags can the ZT231R encode?
UHF tags compatible with EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID. Adaptive Encoding Technology picks the best encode settings automatically.
Can I add RFID to a standard ZT231 later?
Yes. Zebra offers a field-installable UHF RFID kit for the ZT231, so a standard printer can be upgraded on site.
What label sizes fit?
Media from 0.75 to 4.50 in wide, printed up to 4.09 in wide at 203 dpi, with labels as long as 157 in. Common sizes include 4 x 6, 4 x 4 and 4 x 2 in.
What roll and core sizes fit?
Rolls up to 8 in outer diameter on 3 in cores, or 6 in on 1 in cores. That means far fewer roll changes than a desktop printer.
What ribbons does it take?
Ribbons up to 1,476 ft (450 m) long on 1 in cores, 1.57 to 4.33 in wide.
What connectivity does it have?
USB 2.0, RS-232 Serial, 10/100 Ethernet, USB Host and Bluetooth Low Energy come standard. An 802.11ac Wi-Fi card and a second Ethernet card are field-installable.
Which programming languages does it support?
ZPL and ZPL II, compatible with all Zebra printers, plus EPL 2 on 203 dpi models and optional ZBI 2.0.
What warranty does it have?
Zebra warrants the ZT231R against defects in workmanship and materials for 1 year from shipment. Zebra OneCare plans extend coverage to 3 years and can add accidental damage.
What print resolutions does the Zebra ZT231R come in?
The Zebra ZT231R comes in 203 dpi and 300 dpi. This page lists the 203 dpi models. See Zebra ZT231R — 300 dpi Models.
Should I choose 203 dpi or 300 dpi?
203 dpi (8 dots/mm) is the standard for shipping labels, barcodes and most product labels. 300 dpi (12 dots/mm) prints sharper small text, small barcodes, 2D codes and logos, so it suits small labels such as electronics, healthcare and jewelry labels. 600 dpi (24 dots/mm) is for very small, high-detail labels.
