Also available: Zebra ZT411 — 203 dpi TAA Models · Zebra ZT411 — 300 dpi TAA Models
Description

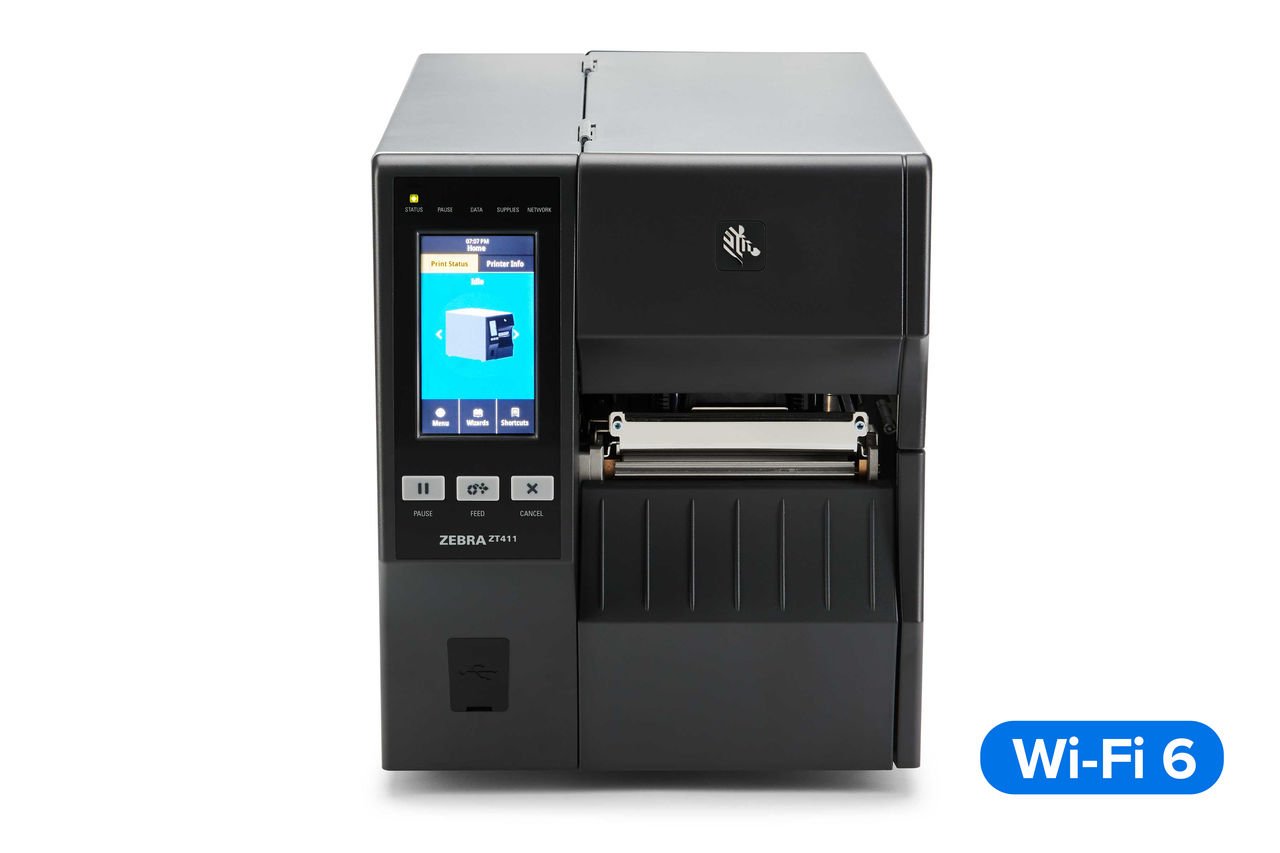

Keep your customers' mission-critical operations running efficiently with the ZT400 Series printers. Constructed with an all-metal frame and bi-fold door, ZT400 Series printers deliver advancements in print speed, registration and connectivity as well as additional advanced features. ZT400 printers feature USB, Serial, Ethernet and Bluetooth® connectivity along with expanded RFID capabilities as well as monochrome and color display options. Plus, with Zebra's Link-OS® environment, an innovative operating system, your customer can easily integrate, manage and maintain these printers from anywhere in the world.
Key features
- Multiple connectivity options, including the latest Wi-Fi. The ZT411 comes standard with Ethernet, Serial, USB, dual USB Host and Bluetooth 4.1. Add an optional dual-band wireless card with Wi-Fi 6 (802.11ax) and Bluetooth 5.3, or Wi-Fi 5 (802.11ac) and Bluetooth 4.2, for fast and reliable wireless connections.
- You can count on the ZT411 to print a variety of different label formats on a variety of different media types.
- The side-loading supplies path makes loading simpler, faster and more intuitive. The color-coded media path guides the user on how to thread the media and ribbon through the printer, while lighted paths make it easy to see, even in poorly lit environments.
- Constructed using a bi-fold door, these printers are designed to easily fit in space-constrained environments.
- Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration.
Part numbers
| Part Number |
|---|
| ZT41146-T01000GA |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Thermal transfer or direct thermal |
|---|---|
| Resolution | 600 dpi (24 dots/mm) |
| Maximum print speed | Up to 14 in/s (356 mm/s); varies by resolution |
| Maximum print width | 4.09 in (104 mm) |
| Maximum print length | 39 in (991 mm) at 600 dpi |
| Connectivity | USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, dual USB Host; two open slots for Wi-Fi 6/BT 5.3 or Wi-Fi 5/BT 4.2, parallel, second Ethernet or applicator cards |
| Display | 4.3 in color touch display; bi-color status LEDs |
| Media handling | Tear-off; options: rewind (factory-installed), front-mount peel, liner take-up, cutter with catch tray |
| Memory | 256 MB SDRAM; 512 MB flash |
| Construction | Metal frame and bi-fold metal media cover with enlarged clear window |
| Media width | 1.00–4.5 in (25.4–114 mm) tear/cutter; 1.00–4.25 in (25.4–108 mm) peel/rewind |
| Maximum roll size | 8.0 in (203 mm) OD on a 3 in (76 mm) core |
| Media thickness | 0.0023–0.010 in (0.058–0.25 mm) |
| Media types | Continuous, die-cut, notch, black mark |
| Ribbon | 1,476 ft (450 m) on 1.0 in (25 mm) cores |
| Ribbon width | 2.00–4.33 in (51–110 mm) |
| Media sensors | Adjustable dual sensors: transmissive and reflective |
| Programming languages | ZPL, ZPL II, EPL 2 (203 dpi models), optional ZBI 2.0 |
| Dimensions | 19.5 x 10.6 x 12.75 in (495 x 269 x 324 mm) L x W x H; 19.7 x 10.8 x 16.7 in with full rewind |
| Weight | 36 lb (16.33 kg); 48.7 lb (22.09 kg) with full rewind |
| Operating temperature | Thermal transfer 40–104 °F (5–40 °C); direct thermal 32–104 °F (0–40 °C) |
| Electrical | 100–240 VAC, 50–60 Hz, auto-detect (PFC); ENERGY STAR qualified |
| Compliance | TAA compliant |
| Warranty | 1 year (Zebra) |
Download the ZT411-600-TAA spec sheet (PDF)
Warranty and support
Warranty: 1-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What is the difference between the ZT411 and ZT421?
The ZT411 prints up to 4.09 in wide at up to 14 in/s and offers 600 dpi. The ZT421 prints up to 6.6 in wide at up to 12 in/s, in 203 or 300 dpi, for larger labels such as drum and pallet labels.
What label sizes fit?
Media 1 to 4.5 in wide (slightly narrower for peel and rewind), with labels up to 39 in long at 600 dpi.
What roll and ribbon sizes fit?
Label rolls up to 8 in outer diameter on 3 in cores, and 1,476 ft (450 m) ribbons on 1 in cores, 2 to 4.33 in wide.
What connectivity does it have?
USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1 and dual USB Host come standard. Two open slots take a Wi-Fi 6 (802.11ax) with Bluetooth 5.3 card, a Wi-Fi 5 (802.11ac) with Bluetooth 4.2 card, parallel, a second Ethernet port or an applicator interface.
What does TAA compliant mean?
This model meets the Trade Agreements Act, which US federal agencies require for most purchases: it is made or substantially transformed in the US or a designated country.
What warranty does it have?
Zebra warrants the ZT411 against defects in workmanship and materials for 1 year from shipment. Zebra OneCare plans extend coverage and can add printheads, normal wear and accidental breakage.
What print resolutions does the Zebra ZT411 come in?
The Zebra ZT411 comes in 203 dpi, 300 dpi, 600 dpi. This page lists the 600 dpi models. See Zebra ZT411 — 203 dpi TAA Models. See Zebra ZT411 — 300 dpi TAA Models.
Should I choose 203 dpi or 300 dpi or 600 dpi?
203 dpi (8 dots/mm) is the standard for shipping labels, barcodes and most product labels. 300 dpi (12 dots/mm) prints sharper small text, small barcodes, 2D codes and logos, so it suits small labels such as electronics, healthcare and jewelry labels. 600 dpi (24 dots/mm) is for very small, high-detail labels.
