Description

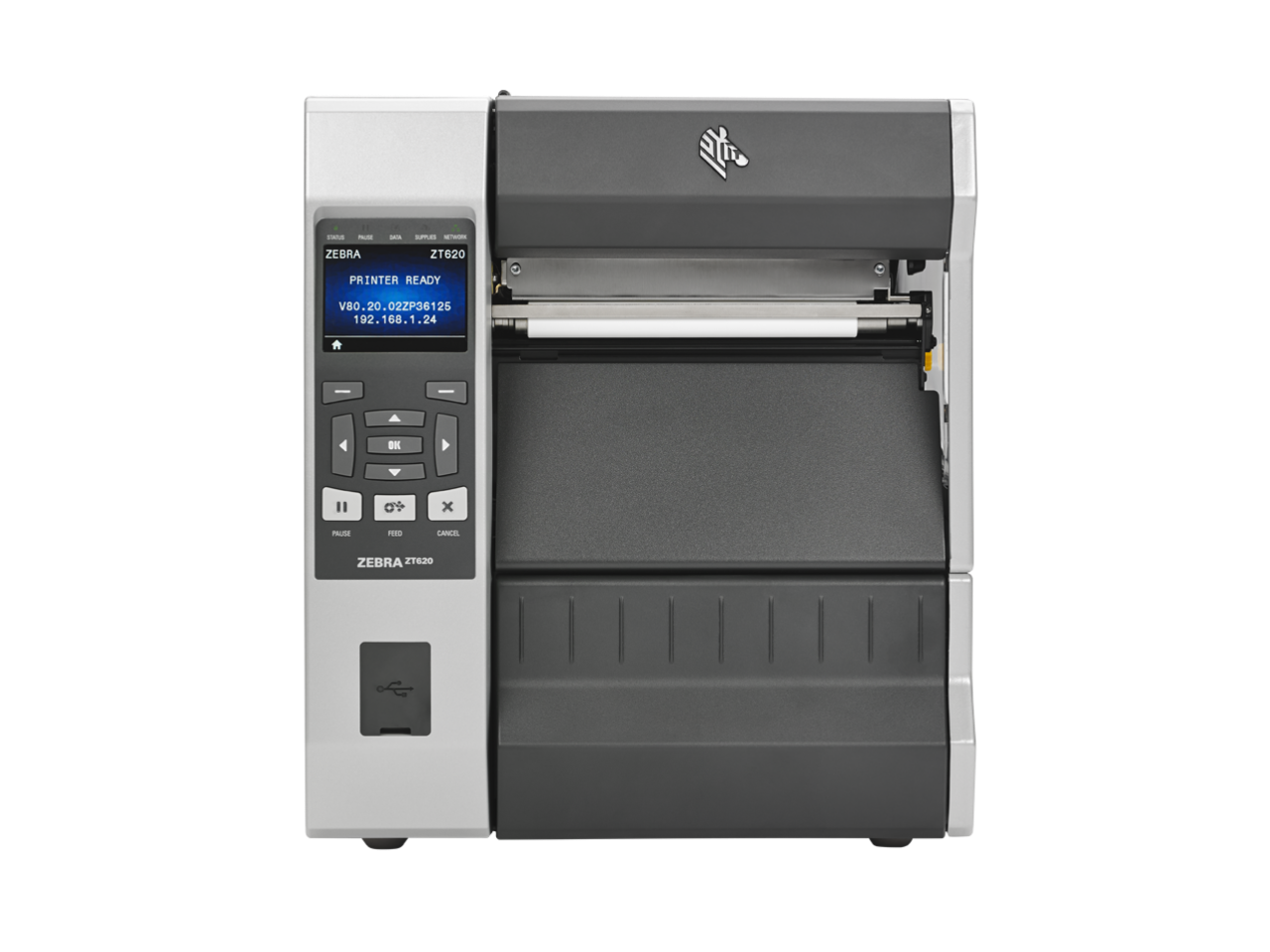

To keep your critical operations running smoothly, you need high-performance industrial printing systems that can stand the test of time, both physically and technologically. Zebra’s ZT610 and ZT620 advance the legacy of its industry-leading Xi Series predecessors, offering next-generation operational visibility, control and adaptability to meet your evolving needs—all with the rugged durability and 24/7 reliability you expect from Zebra. ZT600 Series printers are built to deliver superior print quality and speed across the widest range of applications. Get 24/7 reliability with durable, all-metal framing and high-quality print mechanisms, and take advantage of best-in-class, 600-dpi printing for labels as small as 3 mm. An advanced, user-friendly design and Link-OS® applications simplify everything from setup, integration and daily use to system management, maintenance and troubleshooting. Plus, compatibility with other printing systems and technologies gives you the flexibility to tailor your configuration easily to best meet your growing needs. Gain actionable insight into your operations with Link-OS applications and Operational & Asset Visibility Services (OVS/AVS). Whether you’re assessing printer health, pushing firmware updates or routing jobs, these advanced features provide access and management capabilities on-site or remotely, so you stay in control at all times. Adaptability is key in any new technology investment. ZT600 Series printers offer optional field-installable communication modules, RFID encoding and media handling options, so you can add capabilities as your systems evolve. Plus, Link-OS applications facilitate advanced integration with or replacement of existing systems as needed. With best-in-class performance, ease of use, operational visibility and future-ready adaptability, Zebra’s ZT600 Series printers are engineered to meet your needs today, tomorrow and for years to come.
Key features
- ZT620 RFID printers are built to withstand the most demanding industrial conditions, virtually eliminating operational downtime due to printer failure.
- Simple, intuitive side-loading of media increases printer uptime and reduces training requirements
- Guided media paths change color when a media error occurs, providing simple visual cues to help users locate and resolve problems quickly
- Factory- or field-installable RFID encoder
- Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration.
Part numbers
| Part Number | Media handling | Hardware revision |
|---|---|---|
| ZT62063-T0101A0Z | Standard (Tear) | Color display (BT 4.0) |
| ZT62063-T0102A0Z | Standard (Tear) | Color touch display (BT 4.1) |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
| Print method | Thermal transfer or direct thermal |
|---|---|
| RFID | Integrated UHF reader/encoder; EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID tags; adaptive encoding; chip-based serialization; block permalocking (ATA Spec 2000); field-upgradeable |
| Resolution | 300 dpi (12 dots/mm) |
| Maximum print speed | Up to 12 in/s (305 mm/s); varies by resolution |
| Maximum print width | 6.6 in (168 mm) |
| Maximum continuous print length | 100 in (2540 mm) |
| Connectivity | USB 2.0, RS-232 Serial, Gigabit Ethernet, USB Host, Bluetooth 4.0 (4.1 on touch-display models); two open slots for Wi-Fi, parallel, second Ethernet or applicator cards |
| Display | 4.3 in full-color display; touch display on current-revision models |
| Media handling | Tear-off; options: rewind (full roll on 3 in core, or peel and rewind liner), front-mount cutter with catch tray |
| Memory | 1 GB RAM; 2 GB flash |
| Construction | All-metal frame and bi-fold metal media cover with enlarged clear window |
| Media width | 2.00–7.0 in (51–178 mm) tear/cutter; 2.00–6.75 in (51–171 mm) peel/rewind |
| Maximum roll size | 8.0 in (203 mm) OD on a 3 in (76 mm) core |
| Media thickness | 0.0023–0.010 in (0.058–0.25 mm) |
| Media types | RFID labels and tags; Continuous, die-cut, notch, black mark |
| Ribbon | 1,476 ft (450 m) on 1.0 in (25.4 mm) cores; ink-side-in supply spindle option |
| Ribbon width | 2.00–6.85 in (51–174 mm) |
| Media sensors | Dual sensors: transmissive and reflective |
| Programming languages | ZPL, ZPL II, XML-enabled printing, optional ZBI 2.0 |
| Dimensions | 19.88 x 13.44 x 15.58 in (505 x 341.45 x 395.68 mm) L x W x H |
| Weight | 57.4 lb (26 kg) |
| Operating temperature | Thermal transfer 40–104 °F (5–40 °C); direct thermal 32–104 °F (0–40 °C) |
| Electrical | 90–265 VAC, 47–63 Hz, auto-detect (PFC), rated 250 W; ENERGY STAR |
| Warranty | 1 year (Zebra) |
Download the ZT620R-300 spec sheet (PDF)
Warranty and support
Warranty: 1-year Zebra manufacturer warranty. Warranty service is handled by Zebra (zebra.com/warranty).
Defective on arrival? Contact us within 30 days of delivery and we'll arrange a replacement.
Frequently asked questions
What RFID tags can the ZT620R encode?
UHF tags compatible with EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID. Adaptive encoding picks the best encode settings, so there are no complex placement guidelines.
Can I add RFID to a standard ZT620 later?
Yes. The integrated RFID system is user-upgradeable in the field on both the 4 in ZT610 and 6 in ZT620.
What is the difference between the ZT610 and ZT620?
The ZT610 prints up to 4.09 in wide at up to 14 in/s and offers 600 dpi. The ZT620 prints up to 6.6 in wide at up to 12 in/s, in 203 or 300 dpi, for wider labels.
How does the ZT600 Series compare with the ZT400 Series?
The ZT600 Series is Zebra's high-performance line for 24/7 industrial use: an all-metal design built for harsh conditions, Gigabit Ethernet, 1 GB RAM and 2 GB flash. The ZT400 Series is the mid-range option.
What label sizes fit?
Media 2.00–7.0 in wide, printed up to 6.6 in wide, with continuous printing up to 100 in at 300 dpi.
What roll and ribbon sizes fit?
Label rolls up to 8 in outer diameter on 3 in cores, and 1,476 ft (450 m) ribbons on 1 in cores, 2.00–6.85 in wide.
What connectivity does it have?
USB 2.0, RS-232 Serial, Gigabit Ethernet, USB Host and Bluetooth come standard. Two open slots take a dual-band Wi-Fi card with Bluetooth, parallel, a second Ethernet port or an applicator interface.
What warranty does it have?
Zebra warrants the ZT620R against defects in workmanship and materials for 1 year from shipment. Zebra OneCare plans extend coverage and can add printheads, normal wear and accidental breakage.
What print resolutions does the Zebra ZT620R come in?
The Zebra ZT620R comes in 203 dpi and 300 dpi. This page lists the 300 dpi models. See Zebra ZT620R — 203 dpi Models.
Should I choose 203 dpi or 300 dpi?
203 dpi (8 dots/mm) is the standard for shipping labels, barcodes and most product labels. 300 dpi (12 dots/mm) prints sharper small text, small barcodes, 2D codes and logos, so it suits small labels such as electronics, healthcare and jewelry labels. 600 dpi (24 dots/mm) is for very small, high-detail labels.
